Vue route trajectory playback and aggregation function implementation
Gitee address https://gitee.com/suixishix/leaflet-map.git
Vue downloads leaflet and leaflet.animatedmarker plugin
npm install leaflet npm i -save leaflet.animatedmarker
Introduction, in project main.js
//Import leaflet css js import 'leaflet/dist/leaflet.css' import * as L from 'leaflet' //Mount Vue.L Vue.L = Vue.prototype.$L = L Introduce leaflet.animatedmarker on the page that needs to be used import 'leaflet.animatedmarker/src/AnimatedMarker';
1. Initialize the map
//HTML <template> <div> <button @click="Get">ss</button> <div id="map" style="margin:0 auto;width: 100%;height: 100vh"></div> </div> </template> //script //initialization initmap: function () {<!-- --> // layers let baseLayer = L. tileLayer( "http://t1.tianditu.com/cia_c/wmts?layer=cia & amp;style=default & amp;tilematrixset=c & amp;Service=WMTS & amp;Request=GetTile & amp;Version=1.0. 0 & amp;Format=tiles & amp;TileMatrix={z} & amp;TileCol={x} & amp;TileRow={y} & amp;tk=cda0933a3f64de1ae589eedeb0cb9010", {<!-- --> maxNativeZoom: 17, maxZoom: 23, tileSize: 256, zoomOffset: 1, } ) var tiandituimg = L. tileLayer( "http://t1.tianditu.com/img_c/wmts?layer=img & amp;style=default & amp;tilematrixset=c & amp;Service=WMTS & amp;Request=GetTile & amp;Version=1.0. 0 & amp;Format=tiles & amp;TileMatrix={z} & amp;TileCol={x} & amp;TileRow={y} & amp;tk=cda0933a3f64de1ae589eedeb0cb9010", {<!-- --> maxNativeZoom: 17, maxZoom: 23, tileSize: 256, zoomOffset: 1, } ) this.map = L.map("map", {<!-- --> center: ["28.240356445312","109.41284179688"], zoom: 6.5, maxZoom: 20, minZoom: 5, attributionControl: false, // Remove the leaflet logo in the lower right corner zoomControl: false, ///Edit plugin editable: true, crs: L.CRS.EPSG4326, }); baseLayer.addTo(this.map).setZIndex(10); tiandituimg.addTo(this.map) },
full code
<template> <div> <button @click="Get">ss</button> <div id="map" style="margin:0 auto;width: 100%;height: 100vh"></div> </div> </template> <script> import L from 'leaflet' import 'leaflet.animatedmarker/src/AnimatedMarker'; export default {<!-- --> name: 'gis-population-density', data () {<!-- --> return {<!-- --> latlngs: [["28.240356445312","109.41284179688"],["28.2403561125","109.312841733"]], map: null } }, mounted () {<!-- --> this.initmap() // this. Get() this. GetLine() }, methods: {<!-- --> //Click to trigger the click event to start track playback Get(){<!-- --> let car = require('@/assets/uav.png') var carIcon = L.icon({<!-- --> iconUrl: car, //picture iconSize: [60,60],//size iconAnchor: [30, 30], popupAnchor: [0, 0] }); // key code let animatedMarker = L.animatedMarker(this.latlngs, {<!-- --> icon: carIcon, interval: 1000,//frequency }).addTo(this.map) }, initmap: function () {<!-- --> // layers let baseLayer = L. tileLayer( "http://t1.tianditu.com/cia_c/wmts?layer=cia & amp;style=default & amp;tilematrixset=c & amp;Service=WMTS & amp;Request=GetTile & amp;Version=1.0. 0 & amp;Format=tiles & amp;TileMatrix={z} & amp;TileCol={x} & amp;TileRow={y} & amp;tk=6c6c18e4ec555ea8f0976ec71960021f", {<!-- --> maxNativeZoom: 17, maxZoom: 23, tileSize: 256, zoomOffset: 1, } ) var tiandituimg = L. tileLayer( "http://t1.tianditu.com/img_c/wmts?layer=img & amp;style=default & amp;tilematrixset=c & amp;Service=WMTS & amp;Request=GetTile & amp;Version=1.0. 0 & amp;Format=tiles & amp;TileMatrix={z} & amp;TileCol={x} & amp;TileRow={y} & amp;tk=6c6c18e4ec555ea8f0976ec71960021f", {<!-- --> maxNativeZoom: 17, maxZoom: 23, tileSize: 256, zoomOffset: 1, } ) this.map = L.map("map", {<!-- --> center: ["28.240356445312","109.41284179688"], zoom: 6.5, maxZoom: 20, minZoom: 5, attributionControl: false, // Remove the leaflet logo in the lower right corner zoomControl: false, ///Edit plugin editable: true, crs: L.CRS.EPSG4326, }); baseLayer.addTo(this.map).setZIndex(10); tiandituimg.addTo(this.map) }, GetLine(){<!-- --> let polyline = L.polyline(this.latlngs, {<!-- --> color: '#00CED1', }) polyline. addTo(this. map) for (var i = 0; i<=this.latlngs.length;i ++ ) {<!-- --> let lng = this.latlngs[i][1] let lat = this.latlngs[i][0] this.addbillboard(lng, lat, require('@/assets/sign113.png'), 80, 80, `<div style="border-radius: 5px;background-color: #0b88e9ba;padding: 3px ;text-align: center;" class='leaflet-fly'>Aerial survey point ${<!-- -->i + 1}</div>`, 55, 20, 28, 45, " leaflet-marker",name) } }, /** * Add marker image + text * @param {*} lng longitude * @param {*} lat latitude * @param {*} iconurl image address * @param {*} iconwidth image width * @param {*} iconheight image height * @param {*} label needs to display annotations, pass a div configurable style * @param {*} labelwidth The maximum width of the label * @param {*} labelheight The maximum height of the label * @param {*} labeloffsetx label left and right offset * @param {*} labeloffsety label offset up and down * @param {*} classname The class of the div passed over * @param feature */ addbillboard(lng, lat, iconurl, iconwidth, iconheight, label, labelwidth, labelheight, labeloffsetx, labeloffsety, classname,feature) {<!-- --> //Display the picture separately and bind the bubble content displayed on click bubble (can be an html or dom or separate text) let marker = L.marker([lat, lng], {<!-- --> icon: L.icon({<!-- --> iconUrl: iconurl, iconSize: [iconwidth, iconheight], }), feature: feature }).addTo(this.map).bindPopup('bubble display') marker.on('click', (e) => {<!-- --> // image click event let feature = e.target.options.feature // debugger }) //display text L.marker([lat, lng], {<!-- --> icon: L.divIcon({<!-- --> html: label, className: classname, iconSize: [labelwidth, labelheight], iconAnchor: [labeloffsetx, labeloffsety] }) }).addTo(this.map) } } } </script> <style> #map {<!-- --> width: 100%; height: calc(100vh); z-index: 1; } .leaflet-label {<!-- --> border-radius: 5px; background-color: #0b88e9ba; padding: 3px; text-align: center; } .leaflet-marker {<!-- --> color: antiquewhite; } .sideMap{<!-- --> position: absolute; top: 20px; left: 20px; z-index: 9999; } </style> ![Insert picture description here](https://img-blog.csdnimg.cn/b5af567150bd45b89270a16b1ddabc6f.png#pic_center)
2. Leaflet aggregation function
install plugin
Create leaflet-markercluster under the assets folder Import the css and js files of leaflet-markercluster
Import on component page
//About these files, please download them in my resources
import '@/assets/JS/leaflet-markercluster/leaflet.markercluster-src' import '@/assets/JS/leaflet-markercluster/MarkerCluster.Default.css' import '@/assets/JS/leaflet-markercluster/MarkerCluster.css'
Define mock data
data() {<!-- --> return {<!-- --> //Key code to mount the method markers : L.markerClusterGroup(), map: "", querygroup: null, // mock data list:[{<!-- -->lng:112.9,lat:28.68},{<!-- -->lng:112.8,lat:28.68},{<!-- -->lng:112.7,lat :28.68},{<!-- -->lng:112.6,lat:28.68},{<!-- -->lng:112.5,lat:28.68}] }; },
define method
addbillboard(lng, lat, iconurl, iconwidth, iconheight, label, labelwidth, labelheight, labeloffsetx, labeloffsety, classname,markers) {<!-- --> //title is the bubble content var title = `aaa`; var marker = L.marker([lat, lng], {<!-- --> icon: L.icon({<!-- --> iconUrl: iconurl, iconSize: [iconwidth, iconheight], }) }); // bubble box marker. bindPopup(title); //Key code //Add point marker to markerCluserGroup this.markers.addLayer(marker); },
Complete Aggregation Code Code
<template> <div> <div id="map"></div> </div> </template> <script> import '@/assets/JS/leaflet-markercluster/leaflet.markercluster-src' import '@/assets/JS/leaflet-markercluster/MarkerCluster.Default.css' import '@/assets/JS/leaflet-markercluster/MarkerCluster.css' export default {<!-- --> data() {<!-- --> return {<!-- --> markers : L.markerClusterGroup(), map: "", querygroup: null, list:[{<!-- -->lng:112.9,lat:28.68},{<!-- -->lng:112.8,lat:28.68},{<!-- -->lng:112.7,lat :28.68},{<!-- -->lng:112.6,lat:28.68},{<!-- -->lng:112.5,lat:28.68}] }; }, mounted() {<!-- --> this.initDate(); for (var i of this.list){<!-- --> this.addbillboard(i.lng, i.lat, require('@/assets/sign113.png'), 80, 80, `<div style="border-radius: 5px;background-color: #0b88e9ba ;padding: 3px;text-align: center;" class='leaflet-label'>marker</div>`, 45, 20, 22, 45, "leaflet-marker",'fracture ') } this.map.addLayer(this.markers); }, methods: {<!-- --> initDate() {<!-- --> this.map = L.map("map", {<!-- --> center: [27.68, 112], zoom: 6.5, maxZoom: 20, minZoom: 5, attributionControl: false, // Remove the leaflet logo in the lower right corner zoomControl: false, ///Edit plugin editable: true, crs: L.CRS.EPSG4326, }); var tiandituimg = L. tileLayer( "http://t1.tianditu.com/img_c/wmts?layer=img & amp;style=default & amp;tilematrixset=c & amp;Service=WMTS & amp;Request=GetTile & amp;Version=1.0. 0 & amp;Format=tiles & amp;TileMatrix={z} & amp;TileCol={x} & amp;TileRow={y} & amp;tk=6c6c18e4ec555ea8f0976ec71960021f", {<!-- --> maxNativeZoom: 17, maxZoom: 23, tileSize: 256, zoomOffset: 1, } ).addTo(this.map); var tiandiucia = L. tileLayer( "http://t1.tianditu.com/cia_c/wmts?layer=cia & amp;style=default & amp;tilematrixset=c & amp;Service=WMTS & amp;Request=GetTile & amp;Version=1.0. 0 & amp;Format=tiles & amp;TileMatrix={z} & amp;TileCol={x} & amp;TileRow={y} & amp;tk=6c6c18e4ec555ea8f0976ec71960021f", {<!-- --> maxNativeZoom: 17, maxZoom: 23, tileSize: 256, zoomOffset: 1, } ).addTo(this.map).setZIndex(10); this.querygroup = L.layerGroup().addTo(this.map) }, /** * Add marker image + text * @param {*} lng longitude * @param {*} lat latitude * @param {*} iconurl image address * @param {*} iconwidth image width * @param {*} iconheight image height * @param {*} label needs to display annotations, pass a div configurable style * @param {*} labelwidth The maximum width of the label * @param {*} labelheight The maximum height of the label * @param {*} labeloffsetx label left and right offset * @param {*} labeloffsety label offset up and down * @param {*} classname The class of the div passed over * @param feature */ addbillboard(lng, lat, iconurl, iconwidth, iconheight, label, labelwidth, labelheight, labeloffsetx, labeloffsety, classname) {<!-- --> // title is the display content of the bubble var title = `aaa`; var marker = L.marker([lat, lng], {<!-- --> icon: L.icon({<!-- --> iconUrl: iconurl, iconSize: [iconwidth, iconheight], }) }); // bubble box marker. bindPopup(title); // //Add point markers to markerCluserGroup this.markers.addLayer(marker); }, } }; </script> <style scoped> #map {<!-- --> width: 100%; height: calc(100vh); z-index: 1; } .leaflet-label {<!-- --> border-radius: 5px; background-color: #0b88e9ba; padding: 3px; text-align: center; } .leaflet-marker {<!-- --> color: antiquewhite; } .sideMap{<!-- --> position: absolute; top: 20px; left: 20px; z-index: 9999; } </style>
/script>

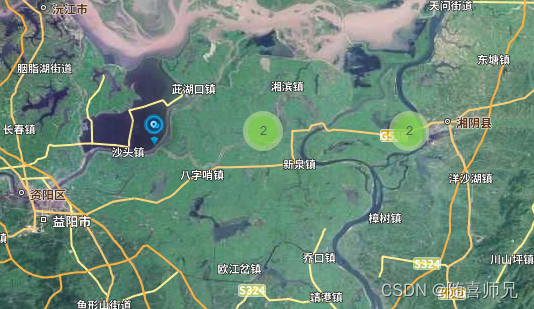

![Insert picture description here](https://img-blog.csdnimg.cn/714f68cdeb354583b88134a24aca6c27.png#pic_center) *****Note: This article uses the EPSG:4326 coordinate system
