When working on a new project, there is often a lack of real data, which makes it impossible to train the model. At this time, algorithm engineers need to create some data by themselves. For example, in the bag target detection shared in this article, there is no real bag in the detection area. data
At this time, you can use image splicing to paste the collected bag images into the scene image [premise: the target image is usually a “photo sticker”]. Of course, not all locations in the scene image can be pasted, and there are generally specific areas. , such as the ground, walls, certain equipment, etc. Therefore, it is necessary to use annotation tools to mark these target areas. The algorithm reads the corresponding target area, randomly sets the coordinate points in the area for pasting, and pastes the target map into the scene map. among
Of course, not any form of target image can be pasted. In order to better integrate the scene, the target needs to be extracted from the photo sticker, that is, except for the target area, other areas are set to a transparent format, so that the splicing effect is ” More “more real” [still very fake! ! ! 】
The specific operation process is shown. The code is attached at the end. We apologize for any bugs!
1. Make a negative template
The blogger uses the LabelImg marking tool to mark the area of the film to be pasted.
display interface of labelImg
Annotate the completed txt content
2. Process the corresponding photo header image
“Buckle” the target from the jpg image. The pixel cutout used here sets the white area as transparent. This is not universal. Friends with different targets can modify the code by themselves. The png image format can save the alpha channel.
# !/usr/bin/env python # -*- coding:utf-8 -*- # @Time : 2023.11 # @Author : green feather # @Email: [email protected] # @Blog: https://blog.csdn.net/ViatorSun # @Note: jpg2png.py import os import cv2 import numpy as np import os.path as osp file_path = "/media/yinzhe/DataYZ/DataSet/DataSet/bag_masknew" save_path = file_path + "_out" if not osp.exists(save_path): os.makedirs(save_path) img_lst = [] for path, dirs, files in os.walk(file_path): for file in files: if os.path.splitext(file)[1] in ['.jpg', ".png", ".JPG", ".jpeg"]: # Scan files in the specified format img_dir = osp.join(path, file) img_save = osp.join(save_path, file) img = cv2.imread(img_dir) img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB) #Convert to RGB format png_img = osp.join(save_path, file.split(".")[0] + ".png") white_mask = cv2.inRange(img, (200, 200, 200), (255, 255, 255)) # Extract the white part img = cv2.cvtColor(img, cv2.COLOR_RGB2BGRA) img[:,:,3][white_mask == 255] = 0 # Make the white part transparent cv2.imwrite(png_img, img)
3. Overlay and fuse the film with the transparent target
There are many methods of overlay and fusion. Here we only use the simplest overlay method. You can also consider cv2.seamlessClone

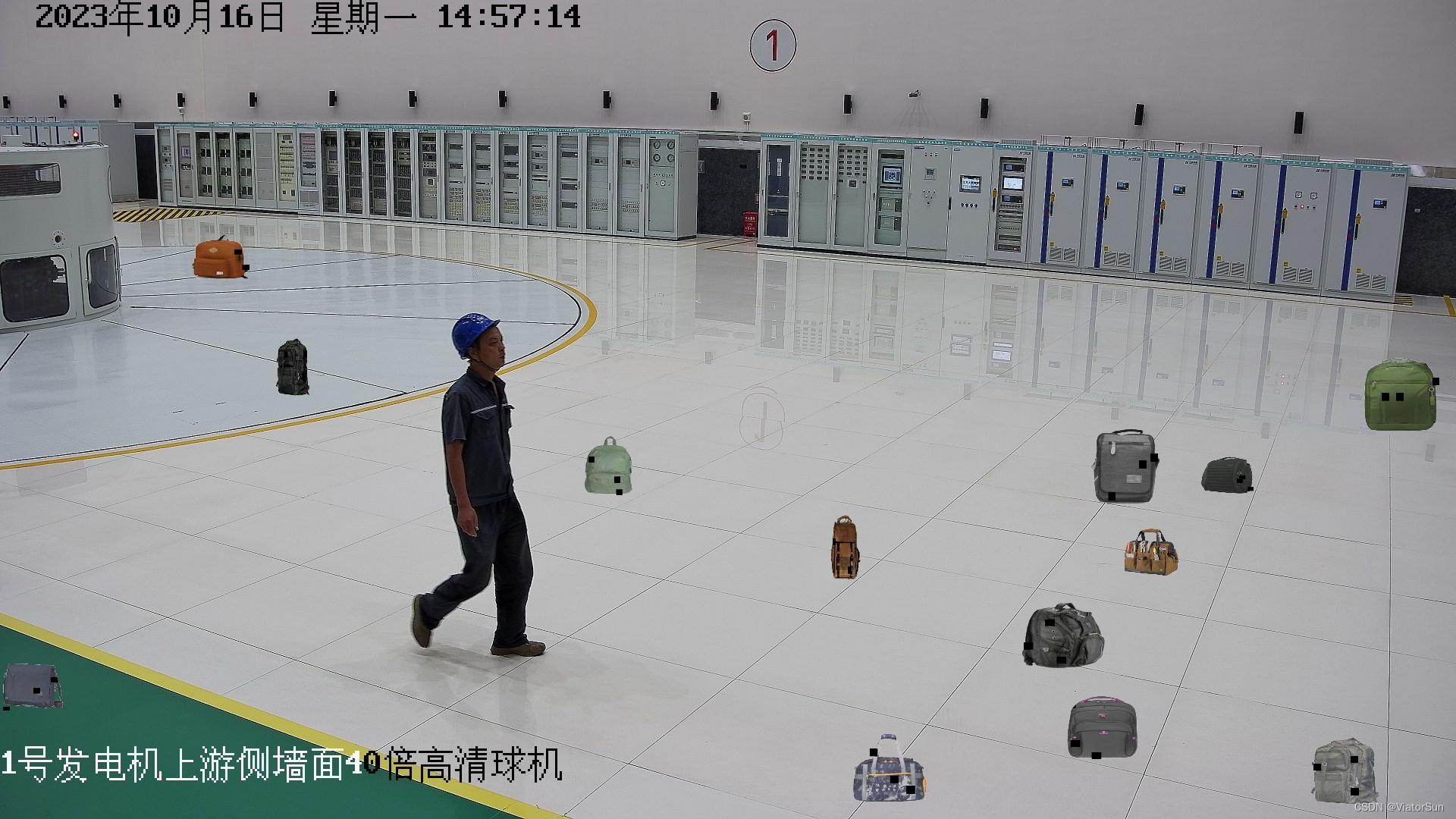

The final result is shown below
In addition to generating synthetic images, annotation information is also generated simultaneously.
Attention! The annotation information here is saved according to the size of the annotation box [hide bugs here for subsequent optimization]
Tip: You can save based on the non-transparent area of the target area
# !/usr/bin/env python # -*- coding:utf-8 -*- # @Time : 2023.10 # @Author : green feather # @Email: [email protected] # @Blog: https://blog.csdn.net/ViatorSun # @Note: ps_merge_img.py import os import cv2 import random from random import sample import numpy as np import argparse def read_label_txt(label_dir): labels = [] with open(label_dir) as fp: for f in fp.readlines(): labels.append(f.strip().split(' ')) return labels def rescale_yolo_labels(labels, img_shape): height, width, nchannel = img_shape rescale_boxes = [] for box in list(labels): x_c = float(box[1]) * width y_c = float(box[2]) * height w = float(box[3]) * width h = float(box[4]) * height x_left = x_c - w * .5 y_left = y_c - h * .5 x_right = x_c + w * .5 y_right = y_c + h * .5 rescale_boxes.append([box[0], int(x_left), int(y_left), int(x_right), int(y_right)]) return rescale_boxes def xyxy2xywh(image, bboxes): height, width, _ = image.shape boxes = [] for box in boxes: if len(box) < 4: continue cls = int(box[0]) x_min = box[1] y_min = box[2] x_max = box[3] y_max = box[4] w = x_max - x_min h = y_max - y_min x_c = (x_min + x_max) / 2.0 y_c = (y_min + y_max) / 2.0 x_c = x_c / width y_c = y_c / height w = float(w) / width h = float(h) / height boxes.append([cls, x_c, y_c, w, h]) return boxes def cast_color(img, value): img_t = cv2.cvtColor(img,cv2.COLOR_BGR2HSV) h,s,v = cv2.split(img_t) # Increase image contrast v2 = np.clip(cv2.add(2*v,value),0,255) img2 = np.uint8(cv2.merge((h,s,v2))) img_cast = cv2.cvtColor(img2,cv2.COLOR_HSV2BGR) #Change image contrast return img_cast def brightness(img, value): img_t = cv2.cvtColor(img,cv2.COLOR_BGR2HSV) h,s,v = cv2.split(img_t) # Increase image brightness v1 = np.clip(cv2.add(1*v,value),0,255) img1 = np.uint8(cv2.merge((h,s,v1))) img_brightness = cv2.cvtColor(img1,cv2.COLOR_HSV2BGR) # Change the image brightness return img_brightness def add_alpha_channel(img): """ Add alpha channel to jpg image """ b_channel, g_channel, r_channel = cv2.split(img) # Split jpg image channels alpha_channel = np.ones(b_channel.shape, dtype=b_channel.dtype) * 255 # Create Alpha channel img_new = cv2.merge((b_channel, g_channel, r_channel, alpha_channel)) # Merge channel return img_new def merge_img(jpg_img, png_img, y1, y2, x1, x2): """ Overlay png transparent images with jpg images y1, y2, x1, x2 are the superimposed position coordinate values """ # Determine whether the jpg image is already 4 channels if jpg_img.shape[2] == 3: jpg_img = add_alpha_channel(jpg_img) ''' When superimposing images, the boundary of the png image may exceed the background jpg image due to improper setting of the superimposition position, and the program will report an error. A series of overlay position restrictions are set here to meet the requirements that when png images exceed the range of jpg images, they can still be overlaid normally. ''' yy1 = 0 yy2 = png_img.shape[0] xx1 = 0 xx2 = png_img.shape[1] if x1 < 0: xx1 = -x1 x1 = 0 if y1 < 0: yy1 = - y1 y1 = 0 if x2 > jpg_img.shape[1]: xx2 = png_img.shape[1] - (x2 - jpg_img.shape[1]) x2 = jpg_img.shape[1] if y2 > jpg_img.shape[0]: yy2 = png_img.shape[0] - (y2 - jpg_img.shape[0]) y2 = jpg_img.shape[0] # Get the alpha value of the image to be overwritten, divide the pixel value by 255, so that the value remains between 0-1 alpha_png = png_img[yy1:yy2, xx1:xx2, 3] / 255.0 alpha_jpg = 1 - alpha_png # Start overlay for c in range(0, 3): jpg_img[y1:y2, x1:x2, c] = ((alpha_jpg * jpg_img[y1:y2, x1:x2, c]) + (alpha_png * png_img[yy1:yy2, xx1:xx2, c])) return jpg_img def random_add_patches_on_objects(image, mask_lst, rescale_boxes, paste_number): img = image.copy() new_bboxes = [] cl=0 random.shuffle(rescale_boxes) for i, rescale_bbox in enumerate(rescale_boxes[:int(len(mask_lst))]): # The image to be ps is in the target box p_img = mask_lst[i] bbox_h, bbox_w, bbox_c = p_img.shape obj_xmin, obj_ymin, obj_xmax, obj_ymax = rescale_bbox[1:] obj_w = obj_xmax - obj_xmin + 1 # Target box size obj_h = obj_ymax - obj_ymin + 1 while not (bbox_w < obj_w and bbox_h < obj_h): # If the target box is smaller than the mask size, scale the mask to ensure that it can be placed in the bbox new_bbox_w = int(bbox_w * random.uniform(0.5, 0.8)) new_bbox_h = int(bbox_h * random.uniform(0.5, 0.8)) bbox_w, bbox_h = new_bbox_w, new_bbox_h success_num = 0 while success_num < paste_number: center_search_space = [obj_xmin, obj_ymin, obj_xmax - new_bbox_w - 1, obj_ymax - new_bbox_h - 1] # Select and generate a random point area if center_search_space[0] >= center_search_space[2] or center_search_space[1] >= center_search_space[3]: print('============== center_search_space error!!!! ================') success_num + = 1 continue new_bbox_x_min = random.randint(center_search_space[0], center_search_space[2]) # Randomly generate point coordinates new_bbox_y_min = random.randint(center_search_space[1], center_search_space[3]) new_bbox_x_left, new_bbox_y_top, new_bbox_x_right, new_bbox_y_bottom = new_bbox_x_min, new_bbox_y_min, new_bbox_x_min + new_bbox_w - 1, new_bbox_y_min + new_bbox_h - 1 new_bbox = [cl, int(new_bbox_x_left), int(new_bbox_y_top), int(new_bbox_x_right), int(new_bbox_y_bottom)] success_num + = 1 new_bboxes.append(new_bbox) p_img = cv2.resize(p_img, (new_bbox_w, new_bbox_h)) img = merge_img(img, p_img, new_bbox_y_top, new_bbox_y_bottom + 1, new_bbox_x_left, new_bbox_x_right + 1) return img, new_bboxes if __name__ == "__main__": # Container used to load parameters parser = argparse.ArgumentParser(description='PS') #Add command line parameters to this parsing object parser.add_argument('-i', '--images', default= '/media/yinzhe/DataYZ/DataSet/DataSet/bag_model', type=str, help='path of images') parser.add_argument('-t', '--mask', default= '/media/yinzhe/DataYZ/DataSet/DataSet/bag_mask', type=str, help='path of masks') parser.add_argument('-s', '--saveImage',default= '/media/yinzhe/DataYZ/DataSet/DataSet/bag_save', type=str, help='path of ') parser.add_argument('-c', '--scale', default= 0.2, type=float, help='number of img') parser.add_argument('-n', '--num', default= 5, type=int, help='number of img') args = parser.parse_args() # Get all parameters mask_filedirs = args.mask images_path = args.images save_path = args.saveImage scale, num = args.scale, args.num mask_paths = [] if not os.path.exists(save_path): os.makedirs(save_path) # Read all mask templates mask_lst = [] for t_path in os.listdir(mask_filedirs): mask = cv2.imread(os.path.join(mask_filedirs, t_path), cv2.IMREAD_UNCHANGED) if (mask.shape[2] != 4): # RGB alpha break mask_lst.append(mask) #template_paths = random.shuffle(template_paths) #Shuffle the order for image_path in os.listdir(images_path) : if "txt" in image_path: continue image = cv2.imread(os.path.join(images_path, image_path)) pre_name = image_path.split('.')[0] bbox_lst = read_label_txt(os.path.join(images_path, pre_name + ".txt")) if image is None or len(bbox_lst) == 0: print("empty image!!! or empty label!!!") continue #yolo txt converted to x1y1x2y2 rescale_bboxes = rescale_yolo_labels(bbox_lst, image.shape) #Convert coordinate representation # maskses_path = sample(mask_paths, int(len(bbox_lst) * scale)) # for i in range(num): masks = sample(mask_lst, int(len(bbox_lst) * scale)) img, bboxes = random_add_patches_on_objects(image, masks, rescale_bboxes, 1) boxes = xyxy2xywh(img, bboxes) img_name = pre_name + '_' + str(i) + '.jpg' print('handle img:', img_name) cv2.imwrite(os.path.join(save_path, img_name), img) with open(os.path.join(save_path, img_name[:-4] + ".txt"), 'a') as f: for box in boxes: mess = str(3) + " " + str(box[1]) + " " + str(box[2]) + " " + str(box[3] * 0.6) + " " + str(box[4 ]* 0.6) + "\ " f.write(mess)
