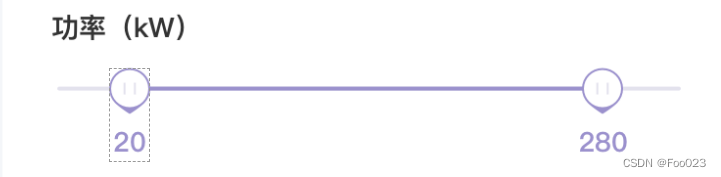

Swipe the progress cursor left and right
The source file was written by other big guys. I made some deletions on the basis of the original one; it is mainly used as a record; the following is the complete code after modification;
#
public class DoubleSlideSeekBar extends View {<!-- -->
/**
* The width of the line (progress bar)
*/
private int lineWidth;
/**
* The length of the line (progress bar)
*/
private int lineLength = 400;
/**
* The height of the word is 100$
*/
private float textHeight;
private int textToImg = 20;//The distance between the font and the top image
/**
* cursor image width
*/
private int imageWidth;
/**
* cursor image height
*/
private int imageHeight;
/**
* Whether the cursor on the left is moving
*/
private boolean isLowerMoving;
/**
* Whether the cursor on the right is moving
*/
private boolean isUpperMoving;
/**
* word size 100$
*/
private int textSize;
/**
* word color 100$
*/
private int textColor;
/**
* The color of the line (progress bar) inside the two cursors
*/
private int inColor = Color. BLUE;
/**
* The color of the outer line (progress bar) of the two cursors
*/
private int outColor = Color. BLUE;
/**
* The color of the scale
*/
private int ruleColor = Color. BLUE;
/**
* The color of the words above the scale
*/
private int ruleTextColor = Color. BLUE;
/**
* Picture of the icon on the left
*/
private Bitmap bitmapLow;
/**
* Picture of the icon on the right
*/
private Bitmap bitmapBig;
/**
* The position of the left icon on the X-axis
*/
private int slideLowX;
/**
* The position of the X-axis where the icon on the right is located
*/
private int slideBigX;
/**
* Icon (cursor) height
*/
private int bitmapHeight;
/**
* Icon (cursor) width
*/
private int bitmapWidth;
/**
* Add some padding size as appropriate so that our custom view can be displayed completely
*/
private int paddingLeft = 25;
private int paddingRight = 25;
private int paddingTop = 20;
private int paddingBottom = 20;
/**
* The position where the line (progress bar) starts
*/
private int lineStart = paddingLeft;
/**
* The Y axis position of the line
*/
private int lineY;
/**
* The end position of the line (progress bar)
*/
private int lineEnd = lineLength + paddingLeft;
/**
* The maximum value of the selector
*/
private int bigValue = 360;
/**
* The minimum value of the selector
*/
private int smallValue = 0;
/**
* The current minimum value of the selector
*/
private float smallRange = 0;
/**
* The current maximum value of the selector
*/
private float bigRange = 360;
/**
* unit: yuan
*/
private String unit = "";
/**
* The height of the tick marks
*/
private Paint linePaint;
private Paint bitmapPaint;
private Paint textPaint;
public DoubleSlideSeekBar(Context context) {<!-- -->
this(context, null);
}
public DoubleSlideSeekBar(Context context, @Nullable AttributeSet attrs) {<!-- -->
this(context, attrs, 0);
}
public DoubleSlideSeekBar(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {<!-- -->
super(context, attrs, defStyleAttr);
TypedArray typedArray = context.getTheme().obtainStyledAttributes(attrs, R.styleable.DoubleSlideSeekBar, defStyleAttr, 0);
int size = typedArray. getIndexCount();
for (int i = 0; i < size; i ++ ) {<!-- -->
int type = typedArray. getIndex(i);
if (type == R.styleable.DoubleSlideSeekBar_inColor) {<!-- -->
inColor = typedArray. getColor(type, Color. BLACK);
} else if (type == R.styleable.DoubleSlideSeekBar_lineHeight) {<!-- -->
lineWidth = (int) typedArray. getDimension(type, dip2px(getContext(), 10f));
} else if (type == R.styleable.DoubleSlideSeekBar_outColor) {<!-- -->
outColor = typedArray. getColor(type, Color. YELLOW);
} else if (type == R.styleable.DoubleSlideSeekBar_textColor) {<!-- -->
textColor = typedArray. getColor(type, Color. BLUE);
} else if (type == R.styleable.DoubleSlideSeekBar_textSize) {<!-- -->
textSize = typedArray.getDimensionPixelSize(type, (int) TypedValue.applyDimension(
TypedValue.COMPLEX_UNIT_SP, 16, getResources().getDisplayMetrics()));
} else if (type == R.styleable.DoubleSlideSeekBar_imageLow) {<!-- -->
bitmapLow = BitmapFactory.decodeResource(getResources(), typedArray.getResourceId(type, 0));
} else if (type == R.styleable.DoubleSlideSeekBar_imageBig) {<!-- -->
bitmapBig = BitmapFactory.decodeResource(getResources(), typedArray.getResourceId(type, 0));
} else if (type == R.styleable.DoubleSlideSeekBar_imageheight) {<!-- -->
imageHeight = (int) typedArray. getDimension(type, dip2px(getContext(), 20f));
} else if (type == R.styleable.DoubleSlideSeekBar_imagewidth) {<!-- -->
imageWidth = (int) typedArray. getDimension(type, dip2px(getContext(), 20f));
} else if (type == R.styleable.DoubleSlideSeekBar_ruleColor) {<!-- -->
ruleColor = typedArray. getColor(type, Color. BLUE);
} else if (type == R.styleable.DoubleSlideSeekBar_ruleTextColor) {<!-- -->
ruleTextColor = typedArray. getColor(type, Color. BLUE);
} else if (type == R.styleable.DoubleSlideSeekBar_unit) {<!-- -->
unit = typedArray. getString(type);
} else if (type == R.styleable.DoubleSlideSeekBar_bigValue) {<!-- -->
bigValue = typedArray. getInteger(type, 100);
} else if (type == R.styleable.DoubleSlideSeekBar_smallValue) {<!-- -->
smallValue = typedArray. getInteger(type, 100);
}
}
typedArray. recycle();
init();
}
private void init() {<!-- -->
/** The default image of the cursor */
if (bitmapLow == null) {<!-- -->
bitmapLow = BitmapFactory.decodeResource(getResources(), R.drawable.icon_bar_seek);
}
if (bitmapBig == null) {<!-- -->
bitmapBig = BitmapFactory.decodeResource(getResources(), R.drawable.icon_bar_seek);
}
/**The real height of the cursor image, and then the image can be set to the desired size by scaling*/
bitmapHeight = bitmapLow. getHeight();
bitmapWidth = bitmapLow. getWidth();
// set desired size
int newWidth = imageWidth;
int newHeight = imageHeight;
// calculate scaling
float scaleWidth = ((float) newWidth) / bitmapWidth;
float scaleHeight = ((float) newHeight) / bitmapHeight;
Matrix matrix = new Matrix();
matrix.postScale(scaleWidth, scaleHeight);
/** zoom image */
bitmapLow = Bitmap.createBitmap(bitmapLow, 0, 0, bitmapWidth, bitmapHeight, matrix, true);
bitmapBig = Bitmap.createBitmap(bitmapBig, 0, 0, bitmapWidth, bitmapHeight, matrix, true);
/** Reacquire the width and height of the cursor image */
bitmapHeight = bitmapLow. getHeight();
bitmapWidth = bitmapLow. getWidth();
/*Get the padding of the component*/
paddingLeft = getPaddingLeft();
paddingRight = getPaddingRight();
paddingTop = getPaddingTop();
paddingBottom = getPaddingBottom();
/*Initialize text paint*/
if (textPaint == null) {<!-- -->
textPaint = new Paint();
}
textPaint.setColor(textColor);
textPaint.setTextSize(textSize);
textPaint.setAntiAlias(true);
textPaint.setTextAlign(Paint.Align.CENTER);
Paint.FontMetrics fontMetrics = textPaint.getFontMetrics();
textHeight = fontMetrics.bottom - fontMetrics.top;
//Initialize the brush of the line
linePaint = new Paint();
linePaint.setAntiAlias(true);
linePaint.setStrokeWidth(lineWidth);
linePaint.setColor(inColor);
linePaint.setStrokeCap(Paint.Cap.ROUND);
//Initialize size value
smallRange = smallValue;
bigRange = bigValue;
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {<!-- -->
int width = getMyMeasureWidth(widthMeasureSpec);
int height = getMyMeasureHeight(heightMeasureSpec);
setMeasuredDimension(width, height);
}
private int getMyMeasureHeight(int heightMeasureSpec) {<!-- -->
int mode = MeasureSpec. getMode(heightMeasureSpec);
int size = MeasureSpec. getSize(heightMeasureSpec);
if (mode == MeasureSpec. EXACTLY) {<!-- -->
size = (int) Math.max(size, paddingBottom + paddingTop + bitmapHeight + textHeight / 2 + 5 + textToImg);
} else {<!-- -->
//wrap content
int height = (int) (paddingBottom + paddingTop + bitmapHeight + textHeight / 2 + 5 + textToImg);
size = Math.min(size, height);
}
return size;
}
private int getMyMeasureWidth(int widthMeasureSpec) {<!-- -->
int mode = MeasureSpec. getMode(widthMeasureSpec);
int size = MeasureSpec. getSize(widthMeasureSpec);
if (mode == MeasureSpec. EXACTLY) {<!-- -->
size = Math.max(size, paddingLeft + paddingRight + lineWidth + bitmapWidth);
} else {<!-- -->
//wrap content
int width = paddingLeft + paddingRight + lineWidth + bitmapWidth;
size = Math.min(size, width);
}
// match parent or fixed size At this point, the length of the line (progress bar) can be obtained
lineLength = size - paddingLeft - paddingRight - bitmapWidth;
//The end position of the line (progress bar)
lineEnd = lineLength + paddingLeft + bitmapWidth / 2;
//The starting position of the line (progress bar)
lineStart = paddingLeft + bitmapWidth / 2;
//Initialize cursor position
slideBigX = lineEnd;
slideLowX = lineStart;
return size;
}
@Override
protected void onDraw(Canvas canvas) {<!-- -->
super.onDraw(canvas);
// Y axis coordinates
lineY = paddingTop + bitmapHeight / 2;
// draw line
linePaint.setColor(inColor);
canvas.drawLine(slideLowX, lineY, slideBigX, lineY, linePaint);
linePaint.setColor(outColor);
// draw the outer line
canvas. drawLine(lineStart, lineY, slideLowX, lineY, linePaint);
canvas.drawLine(slideBigX, lineY, lineEnd, lineY, linePaint);
// draw cursor
if (bitmapPaint == null) {<!-- -->
bitmapPaint = new Paint();
}
canvas.drawBitmap(bitmapLow, slideLowX - bitmapWidth / 2, lineY - bitmapHeight / 2, bitmapPaint);
canvas.drawBitmap(bitmapBig, slideBigX - bitmapWidth / 2, lineY - bitmapHeight / 2, bitmapPaint);
//Draw the word above the cursor
String minRange = String. format("%.0f" + unit, smallRange);
String maxRange = String. format("%.0f" + unit, bigRange);
canvas.drawText(minRange, slideLowX, lineY + bitmapHeight / 2 + textToImg + textHeight / 2, textPaint);
canvas.drawText(maxRange, slideBigX, lineY + bitmapHeight / 2 + textToImg + textHeight / 2, textPaint);
}
@Override
public boolean onTouchEvent(MotionEvent event) {<!-- -->
//event mechanism
super.onTouchEvent(event);
float nowX = event. getX();
float nowY = event. getY();
switch (event. getAction()) {<!-- -->
case MotionEvent. ACTION_DOWN:
// Press on the line (progress bar) range
boolean rightY = Math.abs(nowY - lineY) < bitmapHeight / 2;
//press on the left cursor
boolean lowSlide = Math.abs(nowX - slideLowX) < bitmapWidth / 2;
//press on the right cursor
boolean bigSlide = Math.abs(nowX - slideBigX) < bitmapWidth / 2;
if (rightY & amp; & amp; lowSlide) {<!-- -->
isLowerMoving = true;
} else if (rightY & amp; & amp; bigSlide) {<!-- -->
isUpperMoving = true;
//Clicked on the line outside the cursor
} else if (nowX >= lineStart & amp; & amp; nowX <= slideLowX - bitmapWidth / 2 & amp; & amp; rightY) {<!-- -->
slideLowX = (int) nowX;
updateRange();
postInvalidate();
} else if (nowX <= lineEnd & amp; & amp; nowX >= slideBigX + bitmapWidth / 2 & amp; & amp; rightY) {<!-- -->
slideBigX = (int) nowX;
updateRange();
postInvalidate();
}
break;
case MotionEvent. ACTION_MOVE:
//The cursor on the left is in motion
if (isLowerMoving) {<!-- -->
//The current X coordinate is on the line and to the left of the right cursor
if (nowX <= slideBigX & amp; & amp; nowX >= lineStart - bitmapWidth / 2) {<!-- -->//Can overlap
// if (nowX <= slideBigX - bitmapWidth & amp; & amp; nowX >= lineStart - bitmapWidth / 2) {//Cannot overlap
slideLowX = (int) nowX;
if (slideLowX < lineStart) {<!-- -->
slideLowX = lineStart;
}
//update progress
updateRange();
postInvalidate();
}
} else if (isUpperMoving) {<!-- -->
//The current X coordinate is on the line and to the right of the left cursor
// if (nowX >= slideLowX + bitmapWidth & amp; & amp; nowX <= lineEnd + bitmapWidth / 2) {//Cannot overlap
if (nowX >= slideLowX & amp; & amp; nowX <= lineEnd + bitmapWidth / 2) {<!-- --> //can overlap
slideBigX = (int) nowX;
if (slideBigX > lineEnd) {<!-- -->
slideBigX = lineEnd;
}
//update progress
updateRange();
postInvalidate();
}
}
break;
//finger up
case MotionEvent. ACTION_UP:
isUpperMoving = false;
isLowerMoving = false;
break;
default:
break;
}
return true;
}
private void updateRange() {<!-- -->
//Current left cursor value
smallRange = computRange(slideLowX);
//Current right cursor value
bigRange = computRange(slideBigX);
//Interface implements value transfer
if (onRangeListener != null) {<!-- -->
onRangeListener.onRange(smallRange, bigRange);
}
}
/**
* get the current value
*/
private float computRange(float range) {<!-- -->
return (range - lineStart) * (bigValue - smallValue) / lineLength + smallValue;
}
public int dip2px(Context context, float dpValue) {<!-- -->
final float scale = context.getResources().getDisplayMetrics().density;
return (int) (dpValue * scale + 0.5f);
}
/**
* Get the current Slide value
*/
private float computSlide(float range) {<!-- -->
return (range - smallValue) * lineLength / (bigValue - smallValue) + lineStart;
}
/**
* reset value
*/
public void resetRange(float low, float big) {<!-- -->
this. smallRange = low;
this.bigRange = big;
slideLowX = (int) computSlide(low);
slideBigX = (int) computSlide(big);
postInvalidate();
}
/**
* Write an interface to pass the maximum and minimum values
*/
public interface onRangeListener {<!-- -->
void onRange(float low, float big);
}
private onRangeListener onRangeListener;
public void setOnRangeListener(DoubleSlideSeekBar.onRangeListener onRangeListener) {<!-- -->
this.onRangeListener = onRangeListener;
}
}
resource
<!--line (progress bar) width-->
<attr name="lineHeight" format="dimension" />
<!--The size of the word is 100 yuan-->
<attr name="textSize" format="dimension" />
<!--The color of the word 100 yuan-->
<attr name="textColor" format="color" />
<!--The color of the line (progress bar) inside the two cursors-->
<attr name="inColor" format="color" />
<!--The color of the outer line (progress bar) of the two cursors-->
<attr name="outColor" format="color" />
<!--Picture of the icon on the left-->
<attr name="imageLow" format="reference"/>
<!--Picture of the icon on the right-->
<attr name="imageBig" format="reference"/>
<!--cursor image width-->
<attr name="imagewidth" format="dimension" />
<!--cursor image height-->
<attr name="imageheight" format="dimension" />
<!--Is there a tick mark-->
<attr name="hasRule" format="boolean" />
<!--The color of the scale-->
<attr name="ruleColor" format="color" />
<!--The color of the words above the scale-->
<attr name="ruleTextColor" format="color" />
<!--unit Yuan-->
<attr name="unit" format="string"/>
<!--Number of copies-->
<attr name="equal" format="integer"/>
<!--Scale unit $-->
<attr name="ruleUnit" format="string"/>
<!--The size of the text above the scale-->
<attr name="ruleTextSize" format="dimension" />
<!--The height of the tick mark-->
<attr name="ruleLineHeight" format="dimension" />
<!--The maximum value of the selector-->
<attr name="bigValue" format="integer"/>
<!--The minimum value of the selector-->
<attr name="smallValue" format="integer"/>
<declare-styleable name="DoubleSlideSeekBar">
<attr name="lineHeight" />
<attr name="textSize" />
<attr name="textColor" />
<attr name="inColor" />
<attr name="outColor" />
<attr name="imageLow"/>
<attr name="imageBig"/>
<attr name="imagewidth" />
<attr name="imageheight" />
<attr name="hasRule" />
<attr name="ruleColor" />
<attr name="ruleTextColor" />
<attr name="unit" />
<attr name="equal" />
<attr name="ruleUnit" />
<attr name="ruleTextSize" />
<attr name="ruleLineHeight" />
<attr name="bigValue" />
<attr name="smallValue" />
</declare-styleable>
xml layout:
<com.cn.app.widget.DoubleSlideSeekBar
android:id="@ + id/seekBar"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:paddingHorizontal="5dp"
app:imageheight="22dp"
app:imagewidth="20dp"
app:inColor="#9B91CD"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toBottomOf="@ + id/tv"
app:lineHeight="2dp"
app:outColor="#E3E2ED"
app:textColor="#9B91CD"
app:textSize="14sp" />
This is the first time I use it, mainly for recording, please forgive me if I offend you!
