Canvas Example Application 100 +This column provides basic knowledge of canvas, advanced animation, related application extensions and other information.
As a part of HTML, canvas is an important foundation for the visualization of images, icons and maps. Learning canvas will be very important in other applications.
Article directory
-
- Example effect
- source code
- canvas basic properties
- canvas basic method
Canvas can do many things and display various animations. Here is an example of simulating the effect of burning fire.

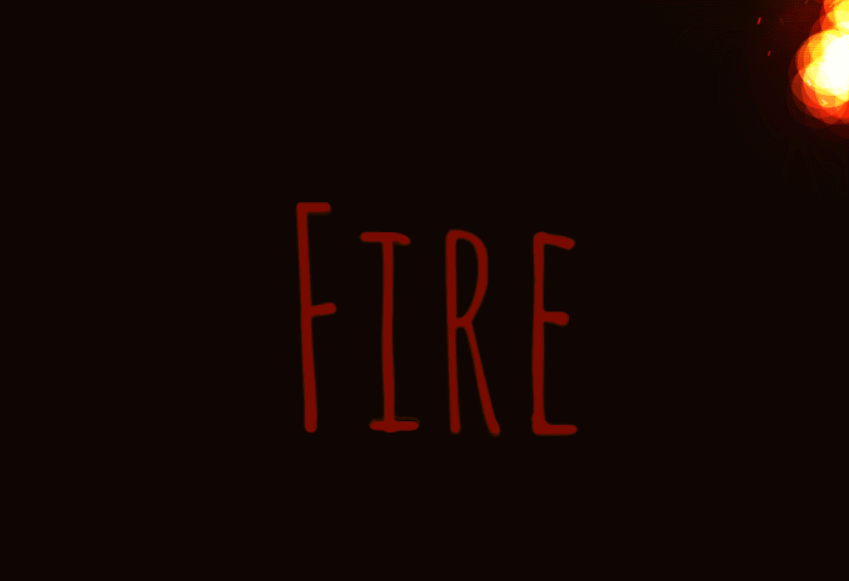

Example effects
Source code
<!doctype html>
<html>
<head>
<meta charset="utf-8">
<title>Canvas simulated flame demonstration</title>
<style>
@import url(https://fonts.googleapis.com/css?family=Amatic + SC);
html, body {<!-- -->
margin:0;
padding:0;
height: 100%;
}
</style>
</head>
<body>
<canvas id="zjcopy"></canvas>
<script>
var Fire = function(){<!-- -->
this.canvas = document.getElementById('zjcopy');
this.ctx = this.canvas.getContext('2d');
this.canvas.height = window.innerHeight;
this.canvas.width = window.innerWidth;
this.aFires = [];
this.aSpark = [];
this.aSpark2 = [];
this.mouse = {<!-- -->
x : this.canvas.width * .5,
y : this.canvas.height * .75,
}
this.init();
}
Fire.prototype.init = function()
{<!-- -->
\t
this.canvas.addEventListener('mousemove', this.updateMouse.bind( this ), false);
}
Fire.prototype.run = function(){<!-- -->
\t
this.update();
this.draw();
if(this.bRuning)
requestAnimationFrame( this.run.bind( this ) );
}
Fire.prototype.start = function(){<!-- -->
this.bRuning = true;
this.run();
}
Fire.prototype.stop = function(){<!-- -->
this.bRuning = false;
}
Fire.prototype.update = function(){<!-- -->
this.aFires.push( new Flame( this.mouse ) );
this.aSpark.push( new Spark( this.mouse ) );
this.aSpark2.push( new Spark( this.mouse ) );
for (var i = this.aFires.length - 1; i >= 0; i--) {<!-- -->
if( this.aFires[i].alive )
this.aFires[i].update();
else
this.aFires.splice(i, 1);
}
for (var i = this.aSpark.length - 1; i >= 0; i--) {<!-- -->
if( this.aSpark[i].alive)
this.aSpark[i].update();
else
this.aSpark.splice(i, 1);
}
for (var i = this.aSpark2.length - 1; i >= 0; i--) {<!-- -->
if( this.aSpark2[i].alive )
this.aSpark2[i].update();
else
this.aSpark2.splice(i, 1);
}
}
Fire.prototype.draw = function(){<!-- -->
this.ctx.globalCompositeOperation = "source-over";
this.ctx.fillStyle = "rgba( 15, 5, 2, 1 )";
this.ctx.fillRect( 0, 0, window.innerWidth, window.innerHeight );
\t
this.grd = this.ctx.createRadialGradient( this.mouse.x, this.mouse.y - 200,200,this.mouse.x, this.mouse.y - 100,0 );
this.grd.addColorStop(0,"rgb( 15, 5, 2 )");
this.grd.addColorStop(1,"rgb( 30, 10, 2 )");
this.ctx.beginPath();
this.ctx.arc( this.mouse.x, this.mouse.y - 100, 200, 0, 2*Math.PI );
this.ctx.fillStyle= this.grd;
this.ctx.fill();
\t
this.ctx.font = "15em Amatic SC";
this.ctx.textAlign = "center";
this.ctx.strokeStyle = "rgb(50, 20, 0)";
this.ctx.fillStyle = "rgb(120, 10, 0)";
this.ctx.lineWidth = 2;
this.ctx.strokeText("Fire",this.canvas.width/2, this.canvas.height * .72 );
this.ctx.fillText("Fire",this.canvas.width/2, this.canvas.height * .72 );
this.ctx.globalCompositeOperation = "overlay";//or lighter or soft-light
for (var i = this.aFires.length - 1; i >= 0; i--) {<!-- -->
this.aFires[i].draw( this.ctx );
}
this.ctx.globalCompositeOperation = "soft-light";//"soft-light";//"color-dodge";
for (var i = this.aSpark.length - 1; i >= 0; i--) {<!-- -->
\t\t
if( ( i % 2 ) === 0 )
this.aSpark[i].draw( this.ctx );
}
this.ctx.globalCompositeOperation = "color-dodge";//"soft-light";//"color-dodge";
for (var i = this.aSpark2.length - 1; i >= 0; i--) {<!-- -->
this.aSpark2[i].draw( this.ctx );
}
}
Fire.prototype.updateMouse = function( e ){<!-- -->
this.mouse.x = e.clientX;
this.mouse.y = e.clientY;
//this.aFires.push( new Flame( this.mouse ) );
}
var Flame = function( mouse ){<!-- -->
this.cx = mouse.x;
this.cy = mouse.y;
this.x = rand( this.cx - 25, this.cx + 25);
this.y = rand( this.cy - 5, this.cy + 5);
this.vy = rand(1, 3);
this.vx = rand( -1, 1 );
this.r = rand(20, 30);
this.life = rand(3, 6);
this.alive = true;
this.c = {<!-- -->
h : Math.floor( rand( 2, 40) ),
s : 100,
l : rand(80, 100),
a : 0,
ta : rand(0.8, 0.9)
}
}
Flame.prototype.update = function()
{<!-- -->
this.y -= this.vy;
this.vy + = 0.05;
this.x + = this.vx;
if( this.x <this.cx )
this.vx + = 0.1;
else
this.vx -= 0.1;
if(this.r > 0)
this.r -= 0.1;
\t
if(this.r <= 0)
this.r = 0;
this.life -= 0.15;
if( this.life <= 0 ){<!-- -->
this.c.a -= 0.05;
if( this.c.a <= 0 )
this.alive = false;
}else if( this.life > 0 & amp; & amp; this.c.a <this.c.ta ){<!-- -->
this.c.a + = .08;
}
}
Flame.prototype.draw = function( ctx ){<!-- -->
ctx.beginPath();
ctx.arc( this.x, this.y, this.r * 3, 0, 2*Math.PI );
ctx.fillStyle = "hsla( " + this.c.h + ", " + this.c.s + "%, " + this.c.l + "%, " + (this.c.a/20) + ")";
ctx.fill();
ctx.beginPath();
ctx.arc( this.x, this.y, this.r, 0, 2*Math.PI );
ctx.fillStyle = "hsla( " + this.c.h + ", " + this.c.s + "%, " + this.c.l + "%, " + this.c.a + ")";
ctx.fill();
}
var Spark = function( mouse ){<!-- -->
this.cx = mouse.x;
this.cy = mouse.y;
this.x = rand( this.cx -40, this.cx + 40);
this.y = rand( this.cy, this.cy + 5);
this.lx = this.x;
this.ly = this.y;
this.vy = rand(1, 3);
this.vx = rand( -4, 4 );
this.r = rand(0, 1);
this.life = rand(4, 5);
this.alive = true;
this.c = {<!-- -->
h : Math.floor( rand( 2, 40) ),
s : 100,
l : rand(40, 100),
a : rand(0.8, 0.9)
}
}
Spark.prototype.update = function()
{<!-- -->
this.lx = this.x;
this.ly = this.y;
this.y -= this.vy;
this.x + = this.vx;
if( this.x <this.cx )
this.vx + = 0.2;
else
this.vx -= 0.2;
this.vy + = 0.08;
this.life -= 0.1;
if( this.life <= 0 ){<!-- -->
this.c.a -= 0.05;
if( this.c.a <= 0 )
this.alive = false;
}
}
Spark.prototype.draw = function( ctx ){<!-- -->
ctx.beginPath();
ctx.moveTo( this.lx , this.ly);
ctx.lineTo( this.x, this.y);
ctx.strokeStyle = "hsla( " + this.c.h + ", " + this.c.s + "%, " + this.c.l + "%, " + (this.c.a / 2) + ")";
ctx.lineWidth = this.r * 2;
ctx.lineCap = 'round';
ctx.stroke();
ctx.closePath();
ctx.beginPath();
ctx.moveTo( this.lx , this.ly);
ctx.lineTo( this.x, this.y);
ctx.strokeStyle = "hsla( " + this.c.h + ", " + this.c.s + "%, " + this.c.l + "%, " + this.c.a + ")";
ctx.lineWidth = this.r;
ctx.stroke();
ctx.closePath();
}
rand = function( min, max ){<!-- --> return Math.random() * ( max - min) + min; };
onresize = function () {<!-- --> oCanvas.canvas.width = window.innerWidth; oCanvas.canvas.height = window.innerHeight; };
var oCanvas;
init = function()
{<!-- -->
oCanvas = new Fire();
oCanvas.start();
}
window.onload = init;
</script>
</body>
</html>
\t\t\t\t\t\t\t
Basic properties of canvas
| Property | Property | Property |
|---|---|---|
| canvas | fillStyle | filter |
| font | globalAlpha | globalCompositeOperation |
| height | lineCap | lineDashOffset |
| lineJoin | lineWidth | miterLimit |
| shadowBlur | shadowColor | shadowOffsetX |
| shadowOffsetY | strokeStyle | textAlign |
| textBaseline | width |
Basic methods of canvas
| Method | Method | Method |
|---|---|---|
| arc() | arcTo() | addColorStop() |
| beginPath() | bezierCurveTo() | clearRect() |
| clip() | close() | closePath() |
| createImageData() | createLinearGradient() | createPattern() |
| createRadialGradient() | drawFocusIfNeeded() | drawImage() |
| ellipse() | fill() | fillRect() |
| fillText() | getImageData() | getLineDash() |
| isPointInPath() | isPointInStroke () | lineTo() |
| measureText() | moveTo() | putImageData() |
| quadraticCurveTo() | rect() | restore() |
| rotate() | save() | scale() |
| setLineDash() | setTransform() | stroke() |
| strokeRect() | strokeText() | transform() |
| translate() |
