1. Preface

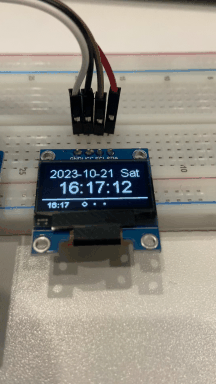

Use esp8266 to drive oled 1306 to achieve:
- date time
- City temperature information
- Forecast information for the next three days
2. Software code
2.1 Main project code
Esp8266_Clock_Weather.ino
#include <Arduino.h> #include <ESP8266WiFi.h> #include <ESP8266HTTPClient.h> #include <time.h> #include <sys/time.h> #include <coredecls.h> #include "SSD1306Wire.h" //Use this for 0.96 inches #include "OLEDDisplayUi.h" #include "HeFeng.h" #include "WeatherStationFonts.h" #include "WeatherStationImages.h" /**************************** Begin Settings ******************************/ const char* WIFI_SSID = "CMCC-pm3h"; //Fill in your WIFI name and password const char* WIFI_PWD = "hw2htwv4"; //Because too many people use my secret key, the number of times I can obtain it exceeds the limit, so I will not provide the secret key. You can go to https://dev.heweather.com/ to get a free one. const char* HEFENG_KEY = "f78a1c10fe5c490b8f3dc3946fe00975";//Fill in your Hefeng weather key const char* HEFENG_LOCATION = "101280107";//Fill in your city ID, you can check it at https://where.heweather.com/index.html #define TZ 8 // China time zone is 8 #define DST_MN 0 //Default is 0 const int UPDATE_INTERVAL_SECS = 30 * 60; // Update weather every 30 minutes const int I2C_DISPLAY_ADDRESS = 0x3c; //I2c address default const String WDAY_NAMES[] = {<!-- -->"Sun", "Mon", "Tue", "Wed", "Thu", "Fri", "Sat"}; //week const String MONTH_NAMES[] = {<!-- -->"Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"}; //Month /**************************** End Settings ******************************/ SSD1306Wire display(I2C_DISPLAY_ADDRESS, SDA, SCL); // Use this for 0.96 inches OLEDDisplayUi ui( & amp;display ); HeFengCurrentData currentWeather; //instantiate object HeFengForeData foreWeather[3]; HeFeng HeFengClient; #define TZ_MN ((TZ)*60) //Time conversion #define TZ_SEC ((TZ)*3600) #define DST_SEC ((DST_MN)*60) time_t now; //instantiation time bool readyForWeatherUpdate = false; // Weather update flag bool first = true; //First update flag long timeSinceLastWUpdate = 0; //Time since last update long timeSinceLastCurrUpdate = 0; //Time since the last weather update void drawProgress(OLEDDisplay *display, int percentage, String label); //Declare the function in advance void updateData(OLEDDisplay *display); void updateDatas(OLEDDisplay *display); void drawDateTime(OLEDDisplay *display, OLEDDisplayUiState* state, int16_t x, int16_t y); void drawCurrentWeather(OLEDDisplay *display, OLEDDisplayUiState* state, int16_t x, int16_t y); void drawForecast(OLEDDisplay *display, OLEDDisplayUiState* state, int16_t x, int16_t y); void drawForecastDetails(OLEDDisplay *display, int x, int y, int dayIndex); void drawHeaderOverlay(OLEDDisplay *display, OLEDDisplayUiState* state); void setReadyForWeatherUpdate(); //Add frame //This array holds function pointers to all frames //The frame is a single view that slides from right to left FrameCallback frames[] = {<!-- --> drawDateTime, drawCurrentWeather, drawForecast }; //Number of pages int numberOfFrames = 3; OverlayCallback overlays[] = {<!-- --> drawHeaderOverlay }; //Overlay callback function int numberOfOverlays = 1; //Number of overlays void setup() {<!-- --> Serial.begin(115200); Serial.println(); Serial.println(); //Screen initialization display.init(); display.clear(); display.display(); display.flipScreenVertically(); //Screen flip display.setContrast(120); //Screen brightness wifiConnect(); ui.setTargetFPS(30); //Refresh frequency ui.setActiveSymbol(activeSymbole); //Set active symbol ui.setInactiveSymbol(inactiveSymbole); //Set the inactive symbol // symbol position // You can change this to TOP, LEFT, BOTTOM, RIGHT ui.setIndicatorPosition(BOTTOM); // Define the position of the first frame in the column ui.setIndicatorDirection(LEFT_RIGHT); //Screen switching direction // You can change the screen switching direction used SLIDE_LEFT, SLIDE_RIGHT, SLIDE_TOP, SLIDE_DOWN ui.setFrameAnimation(SLIDE_LEFT); ui.setFrames(frames, numberOfFrames); // Set frames ui.setTimePerFrame(5000); //Set switching time ui.setOverlays(overlays, numberOfOverlays); //Set overlays // UI is responsible for initializing the display ui.init(); display.flipScreenVertically(); //Screen flipped configTime(TZ_SEC, DST_SEC, "ntp.ntsc.ac.cn", "ntp1.aliyun.com"); //ntp gets the time, you can also use other "pool.ntp.org",\ "0.cn.pool.ntp.org","1.cn.pool.ntp.org","ntp1.aliyun.com" delay(200); } void loop() {<!-- --> if (first) {<!-- --> //First load updateDatas( & amp;display); first = false; } if (millis() - timeSinceLastWUpdate > (1000L * UPDATE_INTERVAL_SECS)) {<!-- --> //Screen refresh setReadyForWeatherUpdate(); timeSinceLastWUpdate = millis(); } if (readyForWeatherUpdate & amp; & amp; ui.getUiState()->frameState == FIXED) {<!-- --> //Weather update updateData(); } int remainingTimeBudget = ui.update(); //Remaining time budget if (remainingTimeBudget > 0) {<!-- --> //You can work here if you are below your time budget. delay(remainingTimeBudget); } } void wifiConnect() {<!-- --> //WIFI password connection, please comment on Web configuration WiFi.begin(WIFI_SSID, WIFI_PWD); while (WiFi.status() != WL_CONNECTED) {<!-- --> Serial.print('.'); delay(80); display.clear(); display.drawXbm(34, 0, bili_Logo_width, bili_Logo_height, bili_Logo_5); display.display(); delay(80); display.clear(); display.drawXbm(34, 0, bili_Logo_width, bili_Logo_height, bili_Logo_6); display.display(); delay(80); display.clear(); display.drawXbm(34, 0, bili_Logo_width, bili_Logo_height, bili_Logo_7); display.display(); delay(80); display.clear(); display.drawXbm(34, 0, bili_Logo_width, bili_Logo_height, bili_Logo_8); display.display(); delay(80); display.clear(); display.drawXbm(34, 0, bili_Logo_width, bili_Logo_height, bili_Logo_1); display.display(); delay(80); display.clear(); display.drawXbm(34, 0, bili_Logo_width, bili_Logo_height, bili_Logo_2); display.display(); delay(80); display.clear(); display.drawXbm(34, 0, bili_Logo_width, bili_Logo_height, bili_Logo_3); display.display(); delay(80); display.clear(); display.drawXbm(34, 0, bili_Logo_width, bili_Logo_height, bili_Logo_4); display.display(); } Serial.println(""); delay(500); } void drawProgress(OLEDDisplay *display, int percentage, String label) {<!-- --> //Drawing progress display->clear(); display->setTextAlignment(TEXT_ALIGN_CENTER); display->setFont(ArialMT_Plain_10); display->drawString(64, 10, label); display->drawProgressBar(2, 28, 124, 10, percentage); display->display(); } void updateData(void) {<!-- --> //Weather update HeFengClient.doUpdateCurr( & currentWeather, HEFENG_KEY, HEFENG_LOCATION); HeFengClient.doUpdateFore(foreWeather, HEFENG_KEY, HEFENG_LOCATION); readyForWeatherUpdate = false; } void updateDatas(OLEDDisplay *display) {<!-- --> //First weather update drawProgress(display, 33, "Updating weather..."); HeFengClient.doUpdateCurr( & currentWeather, HEFENG_KEY, HEFENG_LOCATION); drawProgress(display, 66, "Updating forecasts..."); HeFengClient.doUpdateFore(foreWeather, HEFENG_KEY, HEFENG_LOCATION); readyForWeatherUpdate = false; drawProgress(display, 100, "Done..."); delay(200); } void drawDateTime(OLEDDisplay *display, OLEDDisplayUiState* state, int16_t x, int16_t y) {<!-- --> //Display time now = time(nullptr); struct tm* timeInfo; timeInfo = localtime( & amp;now); char buff[16]; display->setTextAlignment(TEXT_ALIGN_CENTER); display->setFont(ArialMT_Plain_16); String date = WDAY_NAMES[timeInfo->tm_wday]; sprintf_P(buff, PSTR(" d- d- d %s"), timeInfo->tm_year + 1900, timeInfo->tm_mon + 1, timeInfo->tm_mday, WDAY_NAMES[timeInfo->tm_wday].c_str ()); display->drawString(64 + x, 5 + y, String(buff)); display->setFont(ArialMT_Plain_24); sprintf_P(buff, PSTR(" d: d: d"), timeInfo->tm_hour, timeInfo->tm_min, timeInfo->tm_sec); display->drawString(64 + x, 22 + y, String(buff)); display->setTextAlignment(TEXT_ALIGN_LEFT); } void drawCurrentWeather(OLEDDisplay *display, OLEDDisplayUiState* state, int16_t x, int16_t y) {<!-- --> //Display weather display->setFont(ArialMT_Plain_10); display->setTextAlignment(TEXT_ALIGN_CENTER); display->drawString(64 + x, 38 + y, currentWeather.cond_txt + " | Wind: " + currentWeather.wind_sc + " "); display->setFont(ArialMT_Plain_24); display->setTextAlignment(TEXT_ALIGN_LEFT); String temp = currentWeather.tmp + "°C" ; display->drawString(60 + x, 3 + y, temp); display->setFont(ArialMT_Plain_10); display->drawString(62 + x, 26 + y, currentWeather.fl + "°C | " + currentWeather.hum + "%"); display->setFont(Meteocons_Plain_36); display->setTextAlignment(TEXT_ALIGN_CENTER); display->drawString(32 + x, 0 + y, currentWeather.iconMeteCon); } void drawForecast(OLEDDisplay *display, OLEDDisplayUiState* state, int16_t x, int16_t y) {<!-- --> //Weather forecast drawForecastDetails(display, x, y, 0); drawForecastDetails(display, x + 44, y, 1); drawForecastDetails(display, x + 88, y, 2); } void drawForecastDetails(OLEDDisplay *display, int x, int y, int dayIndex) {<!-- --> //Weather forecast display->setTextAlignment(TEXT_ALIGN_CENTER); display->setFont(ArialMT_Plain_10); display->drawString(x + 20, y, foreWeather[dayIndex].dateStr); display->setFont(Meteocons_Plain_21); display->drawString(x + 20, y + 12, foreWeather[dayIndex].iconMeteCon); String temp = foreWeather[dayIndex].tmp_min + " | " + foreWeather[dayIndex].tmp_max; display->setFont(ArialMT_Plain_10); display->drawString(x + 20, y + 34, temp); display->setTextAlignment(TEXT_ALIGN_LEFT); } void drawHeaderOverlay(OLEDDisplay *display, OLEDDisplayUiState* state) {<!-- --> //Drawing header overlay now = time(nullptr); struct tm* timeInfo; timeInfo = localtime( & amp;now); char buff[14]; sprintf_P(buff, PSTR(" d: d"), timeInfo->tm_hour, timeInfo->tm_min); display->setColor(WHITE); display->setFont(ArialMT_Plain_10); display->setTextAlignment(TEXT_ALIGN_LEFT); display->drawString(6, 54, String(buff)); display->setTextAlignment(TEXT_ALIGN_RIGHT); display->drawHorizontalLine(0, 52, 128); } void setReadyForWeatherUpdate() {<!-- --> //Get ready for weather updates Serial.println("Setting readyForUpdate to true"); readyForWeatherUpdate = true; } </code><img class="look-more-preCode contentImg-no-view" src="//i2.wp.com/csdnimg.cn/release/blogv2/dist/pc/img/newCodeMoreBlack. png" alt="" title="">
2.2 Japanese weather
- HeFeng.h
#pragma once #include <ArduinoJson.h> typedef struct HeFengCurrentData {<!-- --> String cond_txt; String fl; String tmp; String hum; String wind_sc; String iconMeteCon; } HeFengCurrentData; typedef struct HeFengForeData {<!-- --> String dateStr; String tmp_min; String tmp_max; String iconMeteCon; } HeFengForeData; class HeFeng {<!-- --> private: String getMeteConIcon(String cond_code); bool fetchBuffer(const char* url); static uint8_t _buffer[1024 * 3]; //gzip stream maximum buffer static size_t _bufferSize; public: HeFeng(); void doUpdateCurr(HeFengCurrentData *data, String key, String location); void doUpdateFore(HeFengForeData *data, String key, String location); }; </code><img class="look-more-preCode contentImg-no-view" src="//i2.wp.com/csdnimg.cn/release/blogv2/dist/pc/img/newCodeMoreBlack. png" alt="" title="">
- HeFeng.cpp
#include <ESP8266WiFi.h> #include <ESP8266HTTPClient.h> #include <WiFiClientSecureBearSSL.h> #include "ArduinoUZlib.h" // gzip library #include "HeFeng.h" uint8_t HeFeng::_buffer[1024 * 3]; size_t HeFeng::_bufferSize = 0; HeFeng::HeFeng() {<!-- --> } bool HeFeng::fetchBuffer(const char *url) {<!-- --> _bufferSize = 0; std::unique_ptr<WiFiClientSecure> client(new WiFiClientSecure); client->setInsecure(); HTTPClient https; Serial.print("[HTTPS] begin...now\\ "); if (https.begin(*client, url)) {<!-- --> https.addHeader("Accept-Encoding", "gzip"); https.setUserAgent("Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:109.0) Gecko/20100101 Firefox/115.0"); int httpCode = https.GET(); if (httpCode > 0) {<!-- --> if (httpCode == HTTP_CODE_OK) {<!-- --> int len = https.getSize(); // get length of document (is -1 when Server sends no Content-Length header) static uint8_t buff[128 * 1] = {<!-- -->0}; // create buffer for read int offset = 0; // read all data from server while (https.connected() & amp; & amp; (len > 0 || len == -1)) {<!-- --> size_t size = client->available(); // get available data size if(size) {<!-- --> int c = client->readBytes(buff, ((size > sizeof(buff)) ? sizeof(buff) : size)); memcpy(_buffer + offset, buff, sizeof(uint8_t) * c); offset + = c; if (len > 0) {<!-- --> len -= c; } } delay(1); } _bufferSize = offset; } } else {<!-- --> Serial.printf("[HTTPS] GET... failed, error: %s\\ ", https.errorToString(httpCode).c_str()); } https.end(); }else{<!-- --> Serial.printf("Unable to connect\\ "); } Serial.print("[HTTPS] end...now\\ "); return _bufferSize > 0; } void HeFeng::doUpdateCurr(HeFengCurrentData *data, String key, String location) {<!-- --> //Get the weather String url = "https://devapi.qweather.com/v7/weather/now?lang=en & amp;gzip=n & amp;location=" + location + " & amp;key=" + key; Serial.print("[HTTPS] begin...now\\ "); fetchBuffer(url.c_str()); // HTTPS gets the data stream if (_bufferSize){<!-- --> Serial.print("bufferSize:"); Serial.println(_bufferSize, DEC); uint8_t *outBuf=NULL; size_t outLen = 0; ArduinoUZlib::decompress(_buffer, _bufferSize, outBuf, outLen); // GZIP decompression // Output the decrypted data to the console. Serial.write(outBuf,outLen); if(outBuf & amp; & amp; outLen){<!-- --> DynamicJsonDocument jsonBuffer(2048); deserializeJson(jsonBuffer, (char*)outBuf,outLen); JsonObject root = jsonBuffer.as<JsonObject>(); String tmp = root["now"]["temp"];//Temperature data->tmp = tmp; String fl = root["now"]["feelsLike"];//Feeling temperature data->fl = fl; String hum = root["now"]["humidity"];//Humidity data->hum = hum; String wind_sc = root["now"]["windScale"];//wind power data->wind_sc = wind_sc; String cond_code = root["now"]["icon"];//Weather icon String meteConIcon = getMeteConIcon(cond_code); String cond_txt = root["now"]["text"];//Weather data->cond_txt = cond_txt; data->iconMeteCon = meteConIcon; jsonBuffer.clear(); } else {<!-- --> Serial.println("doUpdateCurr failed"); data->tmp = "-1"; data->fl = "-1"; data->hum = "-1"; data->wind_sc = "-1"; data->cond_txt = "no network"; data->iconMeteCon = ")"; } //Be sure to remember to release memory if(outBuf != NULL) {<!-- --> free(outBuf); outBuf=NULL; } _bufferSize = 0; } } void HeFeng::doUpdateFore(HeFengForeData *data, String key, String location) {<!-- --> //Get the forecast String url = "https://devapi.qweather.com/v7/weather/3d?lang=en & amp;gzip=n & amp;location=" + location + " & amp;key=" + key; Serial.print("[HTTPS] begin...forecast\\ "); fetchBuffer(url.c_str()); // HTTPS gets the data stream if (_bufferSize){<!-- --> Serial.print("bufferSize:"); Serial.println(_bufferSize, DEC); uint8_t *outBuf=NULL; size_t outLen = 0; ArduinoUZlib::decompress(_buffer, _bufferSize, outBuf, outLen); // GZIP decompression // Output the decrypted data to the console. Serial.write(outBuf,outLen); if(outBuf & amp; & amp; outLen){<!-- --> DynamicJsonDocument jsonBuffer(2048); deserializeJson(jsonBuffer, (char*)outBuf,outLen); JsonObject root = jsonBuffer.as<JsonObject>(); int i; for (i = 0; i < 3; i + + ) {<!-- --> String dateStr = root["daily"][i]["fxDate"]; data[i].dateStr = dateStr.substring(5, dateStr.length()); String tmp_min = root["daily"][i]["tempMin"]; data[i].tmp_min = tmp_min; String tmp_max = root["daily"][i]["tempMax"]; data[i].tmp_max = tmp_max; String cond_code = root["daily"][i]["iconDay"]; String meteConIcon = getMeteConIcon(cond_code); data[i].iconMeteCon = meteConIcon; } jsonBuffer.clear(); } else {<!-- --> int i; for (i = 0; i < 3; i + + ) {<!-- --> data[i].tmp_min = "-1"; data[i].tmp_max = "-1"; data[i].dateStr = "N/A"; data[i].iconMeteCon = ")"; } } //Be sure to remember to release memory if(outBuf != NULL) {<!-- --> free(outBuf); outBuf=NULL; } _bufferSize = 0; } } String HeFeng::getMeteConIcon(String cond_code) {<!-- --> //Get the weather icon. See https://dev.qweather.com/docs/start/icons/ if (cond_code == "100" || cond_code == "150" || cond_code == "9006") {<!-- -->//clear Sunny/Clear return "B"; } if (cond_code == "101") {<!-- -->//Cloudy Cloudy return "Y"; } if (cond_code == "102") {<!-- -->//Shaoyun Few Clouds return "N"; } if (cond_code == "103" || cond_code == "153") {<!-- -->//Partly Cloudy/ return "H"; } if (cond_code == "104" || cond_code == "154") {<!-- -->//Yin Overcast return "D"; } if (cond_code == "300" || cond_code == "301") {<!-- -->//Shower Rain 301-Heavy Shower Rain return "T"; } if (cond_code == "302" || cond_code == "303") {<!-- -->//302-Thundershower Thundershower / 303-Strong Thundershower return "P"; } if (cond_code == "304" || cond_code == "313" || cond_code == "404" || cond_code == "405" || cond_code == "406" ) {<!-- --> //304-Thundershowers with hail Freezing Rain //313-Freezing Rain Freezing Rain //404-Sleet Sleet //405-Rain And Snow Rain And Snow //406- Shower Snow return "X"; } if (cond_code == "305" || cond_code == "308" || cond_code == "309" || cond_code == "314" || cond_code == "399" ) {<!-- --> //305-小雨Light Rain //308-Extreme Rain Extreme Rain //309-Drizzle/Drizzle Drizzle Rain //314-Light to moderate rain Light to moderate rain //399-Rain Light to moderate rain return "Q"; } if (cond_code == "306" || cond_code == "307" || cond_code == "310" || cond_code == "311" || cond_code == "312" || cond_code == "315" || cond_code == "316" || cond_code == "317" || cond_code == "318") {<!-- --> //306-Moderate Rain Moderate Rain //307-Heavy Rain Heavy Rain //310-Heavy rainstorm //311-Heavy Storm Heavy Storm //312-Severe Storm //315-Moderate to heavy rain Moderate to heavy rain //316-Heavy rain to storm //317-Storm to heavy storm Storm to heavy storm //318-Heavy to severe storm Heavy to severe storm return "R"; } if (cond_code == "400" || cond_code == "408") {<!-- --> //400-Light Snow //408-Light to moderate snow Light to moderate snow return "U"; } if (cond_code == "401" || cond_code == "402" || cond_code == "403" || cond_code == "409" || cond_code == "410" ) {<!-- --> //401-Moderate Snow //402-Heavy Snow Heavy Snow //403-Blizzard Snowstorm //409-Moderate to heavy snow Moderate to heavy snow //410-Heavy snow to snowstorm return "W"; } if (cond_code == "407") {<!-- --> //407-Snow Flurry return "V"; } if (cond_code == "499" || cond_code == "901") {<!-- --> //499-Snow Snow //901-Cold Cold return "G"; } if (cond_code == "500") {<!-- --> //500-Mist Mist return "E"; } if (cond_code == "501" || cond_code == "509" || cond_code == "510" || cond_code == "514" || cond_code == "515" ) {<!-- --> //501-Foggy return "M"; } if (cond_code == "502" || cond_code == "511" || cond_code == "512" || cond_code == "513") {<!-- --> //502-Haze Haze return "L"; } if (cond_code == "503" || cond_code == "504" || cond_code == "507" || cond_code == "508") {<!-- --> //503-Sand return "F"; } if (cond_code == "999") {<!-- -->//Unknown return ")"; } if (cond_code == "213") {<!-- --> return "O"; } if (cond_code == "200" || cond_code == "201" || cond_code == "202" || cond_code == "203" || cond_code == "204" || cond_code == "205" || cond_code == "206" || cond_code == "207" || cond_code == "208" || cond_code == "209" || cond_code == "210" || cond_code == "211" || cond_code == "212") {<!-- --> return "S"; } return ")"; } </code><img class="look-more-preCode contentImg-no-view" src="//i2.wp.com/csdnimg.cn/release/blogv2/dist/pc/img/newCodeMoreBlack. png" alt="" title="">
2.3 Font image (too large)
- WeatherStationFonts.h
- WeatherStationImages.h
