QT5.9 ported MQTT, QT for Android ported MQTT

MQTT porting source code package download https://github.com/qt/qtmqtt

1. Transplantation on QT

1. Use qt to open the source code package

Compile using the suite, then transplant after compilation

2. Copy all header files under the qtmqtt-5.12.8\src\mqtt file of the source code package to the Mqtt file created in include

3.

4.

Copy these two files to

5.

Add this file to

2. Porting QT for Android

1. Use qt to open the source code package

Use the android kit to compile, and then transplant after compilation (albeit an alarm, but it does not affect it)

2. Copy all header files under the qtmqtt-5.12.8\src\mqtt file of the source code package to the Mqtt file created in include

3.

Copy these three to

4.

Move this file to

3. Use mqtt to write code and conduct experiments

1. Add in .pro

2. Related codes

.h

#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include <QMainWindow>
#include <QDateTime>
#include <mqtt/qmqttclient.h>

QT_BEGIN_NAMESPACE
namespace Ui { class MainWindow; }
QT_END_NAMESPACE

class MainWindow : public QMainWindow
{
    Q_OBJECT

public:
    MainWindow(QWidget *parent = nullptr);
    ~MainWindow();
    QMqttClient *m_client = nullptr;

    void MyMQTTSubscribe(QString);
    void MyMQTTSendMessage(const QString, const QString);
signals:

    public slots:
    void brokerConnected();
    void updateLogStateChange();
    void brokerDisconnected();
    void receiveMess(const QByteArray & amp;, const QMqttTopicName & amp;);

private slots:
    void on_connect_btn_clicked();

    void on_sub_btn_clicked();

    void on_send_btn_clicked();

private:
    Ui::MainWindow *ui;
    bool connect_flag=false;
};
#endif // MAINWINDOW_H

.c

#include "mainwindow.h"
#include "ui_mainwindow.h"
#include <QTimer>
MainWindow::MainWindow(QWidget *parent)
    : QMainWindow(parent)
    , ui(new Ui::MainWindow)
{
    ui->setupUi(this);
}

MainWindow::~MainWindow()
{
    delete ui;
}

//subscription
void MainWindow::MyMQTTSubscribe(QString str)
{
    auto subscription = m_client->subscribe(str, 0);
    if (!subscription) {
        qDebug() << "Could not subscribe. Is there a valid connection?";
        return;
    }
}

//time
void MainWindow::updateLogStateChange()
{
    const QString content = QDateTime::currentDateTime().toString()
                     + QLatin1String(": State Change")
                     + QString::number(m_client->state())
                     + QLatin1Char('\\
');
    qDebug() << content;
}

//connect
void MainWindow::brokerConnected()
{
    qDebug() << "Connected!";
    QString text=QString{"Connection successful, ip=%1,port=%2"}.arg(ui->ip_lineEdit->text()).arg(ui->port_lineEdit->text());
    ui->connect_label->setText(text);
    connect_flag=true;
    if(m_client->state() == QMqttClient::Connected){
        //Connect to receive messages
        connect(m_client, SIGNAL(messageReceived(QByteArray,QMqttTopicName)), this, SLOT(receiveMess(QByteArray,QMqttTopicName)));
    }
}

//disconnect
void MainWindow::brokerDisconnected()
{
    qDebug() << "Disconnected!";
}

//take over
void MainWindow::receiveMess(const QByteArray & amp;message, const QMqttTopicName & amp;topic)
{
   QString content;
   content = QDateTime::currentDateTime().toString() + QLatin1Char('\\
');
   content + = QLatin1String(" Received Topic: ") + topic.name() + QLatin1Char('\\
');
   content + = QLatin1String(" Message: ") + message + QLatin1Char('\\
');
   qDebug() << content;
   ui->recv_textEdit->append(content);
}

//send
void MainWindow::MyMQTTSendMessage(const QString topic, const QString message)
{
    if (m_client->publish(topic, message.toUtf8()) == -1){
        qDebug() << "Could not publish message";
    }
}

void MainWindow::on_connect_btn_clicked()
{
    QString ip=ui->ip_lineEdit->text();
    QString port=ui->port_lineEdit->text();
    if(ip=="" || port=="")
    {
        qDebug()<<"ip or port content is empty";
        return ;
    }
    m_client = new QMqttClient(this);
    m_client->setHostname(ip);
    m_client->setPort(port.toInt());
    m_client->connectToHost();

// QTimer *time1=new QTimer(this);
// time1->setInterval(5000);
// time1->start();
// connect(time1, & amp;QTimer::timeout,this,[=](){
// qDebug()<<1;
// MyMQTTSendMessage("mcu_test","hello");
// });

    connect(m_client, & amp;QMqttClient::connected, this, & amp;MainWindow::brokerConnected);
    connect(m_client, & amp;QMqttClient::stateChanged, this, & amp;MainWindow::updateLogStateChange);
    connect(m_client, & amp;QMqttClient::disconnected, this, & amp;MainWindow::brokerDisconnected);

    connect(m_client, & amp;QMqttClient::pingResponseReceived, this, [=]() {
        const QString content = QDateTime::currentDateTime().toString()
                     + QLatin1String(" PingResponse")
                     + QLatin1Char('\\
');
        qDebug() << content;
    });
}

void MainWindow::on_sub_btn_clicked()
{
    if(connect_flag)
    {
        QString sub=ui->sub_lineEdit->text();
        if(sub=="")
        {
            qDebug()<<"Subscription content";
            return ;
        }
        m_client->subscribe(sub, 0);//Subscribe
        //MyMQTTSubscribe("topic2");//Subscribe
    }
    else
        qDebug()<<"Not connected";
}

void MainWindow::on_send_btn_clicked()
{
    if(connect_flag)
    {
        QString topic=ui->topic_lineEdit->text();
        QString text=ui->text_lineEdit->text();
        if(topic=="" || text=="")
        {
            qDebug()<<"The topic or content is empty";
            return ;
        }
        else
        {
            MyMQTTSendMessage(topic,text);
        }
    else
        qDebug()<<"Not connected";
}

3. The effect is as shown in the figure

window side

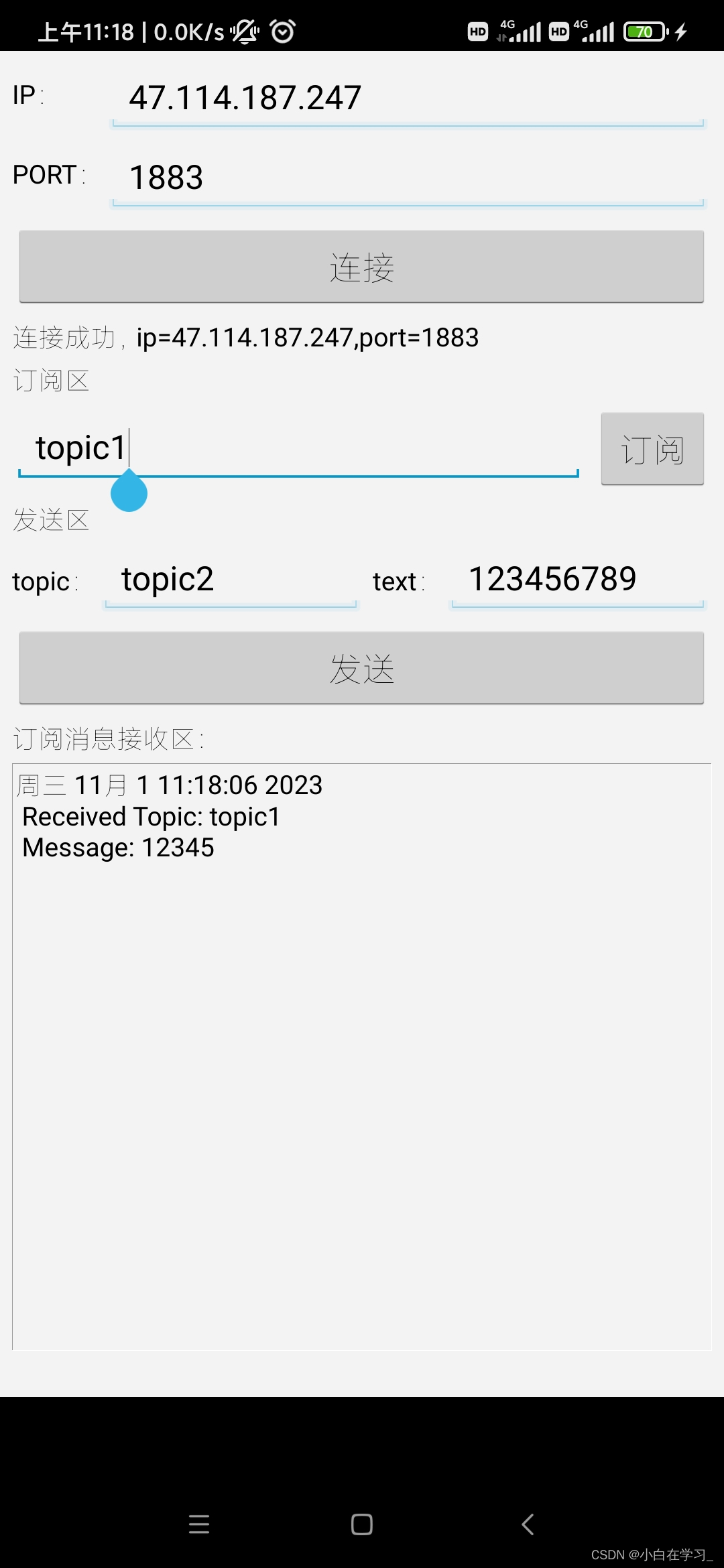

android side
