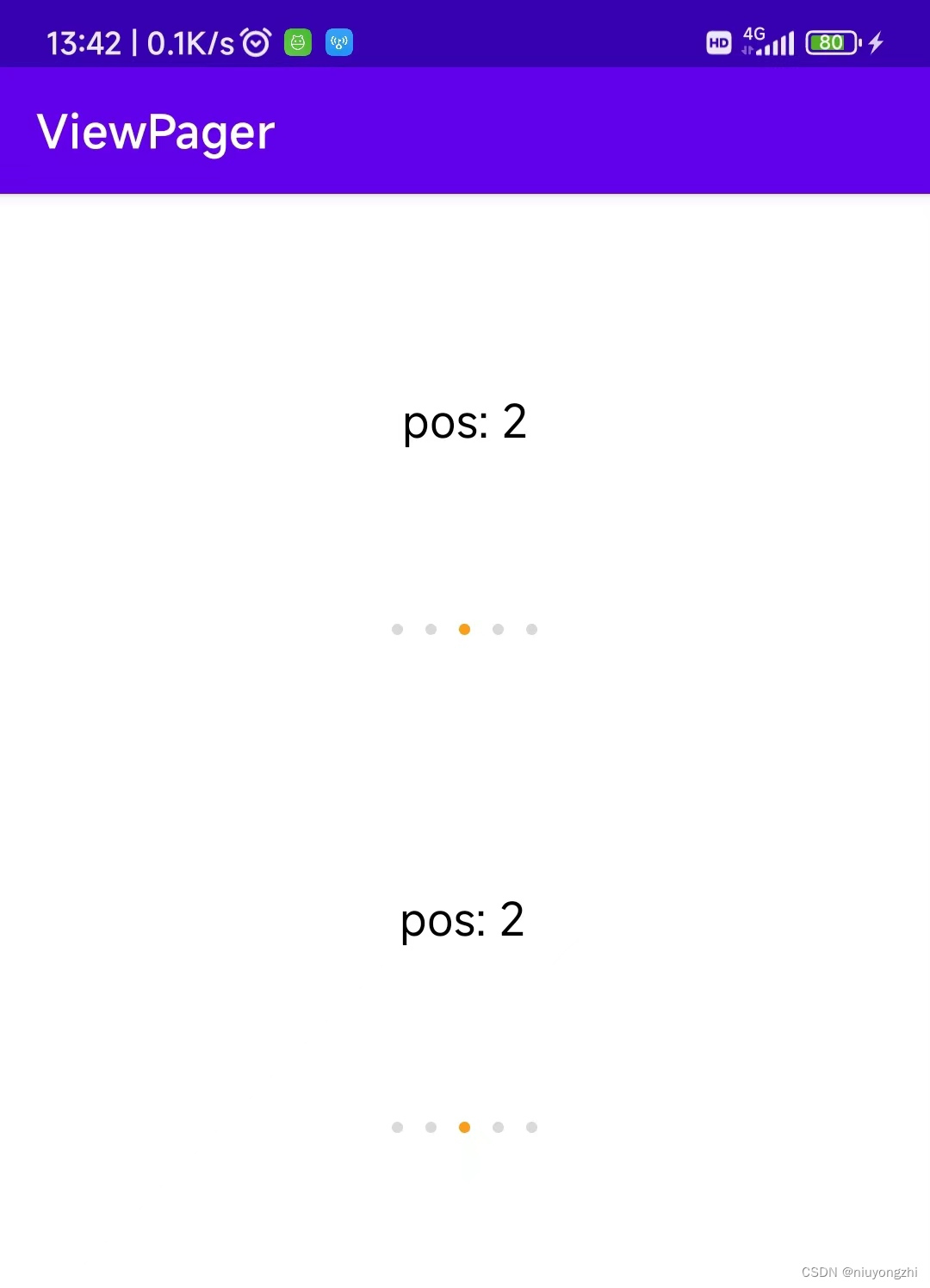

1.ViewPager implements carousel graphics effects.
1) In layout, PageIndicatorView carousel View
<RelativeLayout android:layout_width="match_parent" android:layout_height="200dp" android:orientation="vertical"> <androidx.viewpager2.widget.ViewPager2 android:id="@ + id/viewpager" android:layout_width="match_parent" android:layout_height="match_parent" /> <com.example.viewpager.indicator.PageIndicatorView android:id="@ + id/indicator1" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_alignParentBottom="true" /> </RelativeLayout>
2) In Activity
List<String> list = new ArrayList<>(); for (int i = 0; i < 5; i + + ) { list.add("pos: " + i); } viewPager = findViewById(R.id.viewpager); indicator1 = findViewById(R.id.indicator1); //Set whether ViewPager scrolls horizontally or vertically viewPager.setOrientation(ViewPager2.ORIENTATION_HORIZONTAL); viewPager.setAdapter(new MyPageAdapter2(this, list)); indicator1.initIndicator(list.size()); viewPager.registerOnPageChangeCallback(new ViewPager2.OnPageChangeCallback() { @Override public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) { super.onPageScrolled(position, positionOffset, positionOffsetPixels); } @Override public void onPageSelected(int position) { //When the page slides, switch the indicator if (indicator1.getChildCount() > 0) { indicator1.setSelectedPage(position % indicator1.getChildCount()); } } @Override public void onPageScrollStateChanged(int state) { super.onPageScrollStateChanged(state); } });
2.RecycleView implements carousel effect:
1) In Layout
<RelativeLayout android:layout_width="match_parent" android:layout_height="200dp" android:layout_marginTop="20dp"> <androidx.recyclerview.widget.RecyclerView android:id="@ + id/recycle_view" android:layout_width="match_parent" android:layout_height="200dp"/> <com.example.viewpager.indicator.PageIndicatorView android:id="@ + id/indicator2" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_alignParentBottom="true" /> </RelativeLayout>
2) In Activity:
recyclerView = findViewById(R.id.recycle_view); indicator2 = findViewById(R.id.indicator2); indicator2.initIndicator(list.size()); LinearLayoutManager manager = new LinearLayoutManager(this, LinearLayoutManager.HORIZONTAL, false); recyclerView.setLayoutManager(manager); recyclerView.setAdapter(new MyPageAdapter2(this, list)); recyclerView.addOnScrollListener(new RecyclerView.OnScrollListener() { @Override public void onScrolled(@NonNull RecyclerView recyclerView, int dx, int dy) { super.onScrolled(recyclerView, dx, dy); int firstReal = manager.findFirstVisibleItemPosition(); View viewFirst = manager.findViewByPosition(firstReal); float width = viewFirst.getWidth(); if (width != 0 & amp; & amp; viewFirst != null) { float right = viewFirst.getRight(); float ratio = right / width; if (ratio > 0.8) { if (currentIndex != firstReal) { currentIndex = firstReal; indicator2.setSelectedPage(currentIndex); } } else if (ratio < 0.2) { if (currentIndex != firstReal + 1) { currentIndex = firstReal + 1; indicator2.setSelectedPage(currentIndex); } } } } });
3. Sliding indicator:
public class PageIndicatorView extends LinearLayout { private Context mContext = null; private int dotSize = 5; // size of indicator (dp) private int margins = 5; // indicator spacing (dp) private List<View> indicatorViews = null; // Store indicators public PageIndicatorView(Context context) { this(context, null); } public PageIndicatorView(Context context, AttributeSet attrs) { this(context, attrs, 0); } public PageIndicatorView(Context context, AttributeSet attrs, int defStyleAttr) { super(context, attrs, defStyleAttr); init(context); } private void init(Context context) { this.mContext = context; setGravity(Gravity.CENTER); setOrientation(HORIZONTAL); dotSize = Utils.dip2px(dotSize); margins = Utils.dip2px( margins); } /** * Initialization indicator, the first page is selected by default * * @param count The number of indicators, that is, the number of pages */ public void initIndicator(int count) { if (indicatorViews == null) { indicatorViews = new ArrayList<>(); } else { indicatorViews.clear(); removeAllViews(); } View view; LayoutParams params = new LayoutParams(dotSize, dotSize); params.setMargins(margins, margins, margins, margins); for (int i = 0; i < count; i + + ) { view = new View(mContext); view.setBackgroundResource(R.drawable.indicator_normal); addView(view, params); indicatorViews.add(view); } if (indicatorViews.size() > 0) { indicatorViews.get(0).setBackgroundResource(R.drawable.indicator_active); } } /** * Set selected page * * @param selected page index, starting from 0 */ public void setSelectedPage(int selected) { for (int i = 0; i < indicatorViews.size(); i + + ) { if (i == selected) { indicatorViews.get(i).setBackgroundResource(R.drawable.indicator_active); } else { indicatorViews.get(i).setBackgroundResource(R.drawable.indicator_normal); } } } }
Two small dot codes:
<shape xmlns:android="http://schemas.android.com/apk/res/android" android:shape="oval"> <solid android:color="#fffc9d16" /> </shape>
<shape xmlns:android="http://schemas.android.com/apk/res/android" android:shape="oval"> <solid android:color="#FFD9D9D9" /> </shape>
Code download:
https://download.csdn.net/download/niuyongzhi/88408862
