• write in front

• Scene description

• CompletableFuture usage

• Synchronous method Pick and asynchronous method query the price of a certain product in all stores

  • Why CompletableFuture is still needed

  • Other API introduction

  • Application scenarios of CompletableFuture

  • Optimize space

Write in front

By reading this article you will learn:

• Use of CompletableFuture

• CompletableFure asynchronous and synchronous performance testing

• Why do we still need to introduce CompletableFuture in JDK1.8 when we already have Future?

• Application scenarios of CompletableFuture

• Optimizing the use of CompletableFuture

Backend management system + user applet implemented based on Spring Boot + MyBatis Plus + Vue & Element, supporting RBAC dynamic permissions, multi-tenancy, data permissions, workflow, three-party login, payment, SMS, mall and other functions

• Project address: https://github.com/YunaiV/ruoyi-vue-pro

• Video tutorial: https://doc.iocoder.cn/video/

Scene description

Query the price of a certain product in all stores and return it. The API for querying the price of a certain product in the store is synchronized. A Shop class provides a synchronized method named getPrice.

• Shop class: Shop.java

public class Shop {
    private Random random = new Random();
    /**
     * Find price based on product name
     * */
    public double getPrice(String product) {
        return calculatePrice(product);
    }

    /**
     * Calculate the price
     *
     * @param product
     * @return
     * */
    private double calculatePrice(String product) {
        delay();
        //random.nextDouble() returns the discount randomly
        return random.nextDouble() * product.charAt(0) + product.charAt(1);
    }

    /**
     * Simulate other time-consuming operations through sleep
     * */
    private void delay() {
        try {
            Thread.sleep(1000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }
}

Querying the price of goods is a synchronous method, and other operations are simulated through the sleep method. This scenario simulates when a third-party API needs to be called, but the third-party provides a synchronous API. When the third-party API cannot be modified, how to design code calls to improve the performance and throughput of the application. In this case, the CompletableFuture class can be used

Backend management system + user applet implemented based on Spring Cloud Alibaba + Gateway + Nacos + RocketMQ + Vue & Element, supporting RBAC dynamic permissions, multi-tenancy, data permissions, workflow, three-party login, payment, SMS, mall and other functions

• Project address: https://github.com/YunaiV/yudao-cloud

• Video tutorial: https://doc.iocoder.cn/video/

CompletableFuture usage

Completable is the implementation class of Future interface, introduced in JDK1.8

• Creation of CompletableFuture:

  illustrate:

  CompletableFuture<Double> futurePrice = new CompletableFuture<>();

  public static <U> CompletableFuture<U> completedFuture(U value) {
      return new CompletableFuture<U>((value == null) ? NIL : value);
  }

  The value of the parameter is the result of the task execution. Generally, this method is rarely used in practical applications.

  //Method 1
  public static <U> CompletableFuture<U> supplyAsync(Supplier<U> supplier) {
      return asyncSupplyStage(asyncPool, supplier);
  }
  //Method Two
  public static <U> CompletableFuture<U> supplyAsync(Supplier<U> supplier,
                                                     Executor executor) {
      return asyncSupplyStage(screenExecutor(executor), supplier);
  }

  //Method 1
  public static CompletableFuture<Void> runAsync(Runnable runnable) {
      return asyncRunStage(asyncPool, runnable);
  }
  //Method Two
  public static CompletableFuture<Void> runAsync(Runnable runnable, Executor executor) {
      return asyncRunStage(screenExecutor(executor), runnable);
  }

  • Created using the CompletableFuture#runAsync static method runAsync has two overloaded methods

  • Created using the CompletableFuture#supplyAsync static method supplyAsync has two overloaded methods:

  • Created using the CompletableFuture#completedFuture static method

  • The difference between the two overloaded methods => The latter can pass in a custom Executor, the former is the default and uses ForkJoinPool

  • The difference between supplyAsync and runAsync methods => The former has a return value and the latter has no return value

  • Supplier is a functional interface, so this method needs to pass in the implementation class of the interface. If you trace the source code, you will find that the method of the interface will be called in the run method. Therefore, using this method to create a CompletableFuture object only requires overriding the get method in Supplier and defining the task in the get method. And because functional interfaces can use Lambda expressions, the code will be concise compared to creating a CompletableFuture object with new.

  • Use new method

• Getting results: The CompltableFuture class provides four ways to get results.

  //Method 1
  public T get()
  //Method 2
  public T get(long timeout, TimeUnit unit)
  //Method 3
  public T getNow(T valueIfAbsent)
  //Method 4
  public T join()

  illustrate:

  Example:

  • get() and get(long timeout, TimeUnit unit) => are already provided in Future. The latter provides timeout processing. If the result is not obtained within the specified time, a timeout exception will be thrown.

  • getNow => Get the result immediately without blocking. If the result calculation is completed, the result or an exception during the calculation process will be returned. If the calculation is not completed, the set valueIfAbsent value will be returned.

  • No exception will be thrown in the join => method

public class AcquireResultTest {
  public static void main(String[] args) throws ExecutionException, InterruptedException {
      //getNow method test
      CompletableFuture<String> cp1 = CompletableFuture.supplyAsync(() -> {
          try {
              Thread.sleep(60 * 1000 * 60 );
          } catch (InterruptedException e) {
              e.printStackTrace();
          }

          return "hello world";
      });

      System.out.println(cp1.getNow("hello h2t"));

      //join method test
      CompletableFuture<Integer> cp2 = CompletableFuture.supplyAsync((()-> 1 / 0));
      System.out.println(cp2.join());

      //get method test
      CompletableFuture<Integer> cp3 = CompletableFuture.supplyAsync((()-> 1 / 0));
      System.out.println(cp3.get());
  }
}

illustrate:

• The first execution result is hello h2t, because you have to sleep for 1 minute first and the result cannot be obtained immediately.

• The join method will not throw an exception in the result method, but the execution result will throw an exception. The exception thrown is CompletionException.

• The get method will throw an exception in the result method. The exception thrown by the execution result is ExecutionException.

• Exception handling: CompletableFuture objects created using static methods do not need to explicitly handle exceptions. Objects created using new need to call the completeExceptionally method to set the captured exceptions. For example:

CompletableFuture completableFuture = new CompletableFuture();
new Thread(() -> {
   try {
       //doSomething, call the complete method to record the execution results of other methods in the completableFuture object
       completableFuture.complete(null);
   } catch (Exception e) {
       //Exception handling
       completableFuture.completeExceptionally(e);
    }
}).start();

Synchronous method Pick asynchronous method to query the price of a product in all stores

The store is a list:

private static List<Shop> shopList = Arrays.asList(
        new Shop("BestPrice"),
        new Shop("LetsSaveBig"),
        new Shop("MyFavoriteShop"),
        new Shop("BuyItAll")
);

Sync method:

private static List<String> findPriceSync(String product) {
    return shopList.stream()
            .map(shop -> String.format("%s price is %.2f",
                    shop.getName(), shop.getPrice(product))) //Format conversion
            .collect(Collectors.toList());
}

Asynchronous methods:

private static List<String> findPriceAsync(String product) {
    List<CompletableFuture<String>> completableFutureList = shopList.stream()
            //Convert to asynchronous execution
            .map(shop -> CompletableFuture.supplyAsync(
                    () -> String.format("%s price is %.2f",
                            shop.getName(), shop.getPrice(product)))) //Format conversion
            .collect(Collectors.toList());

    return completableFutureList.stream()
            .map(CompletableFuture::join) //Getting the result will not throw an exception
            .collect(Collectors.toList());
}

Performance test results:

Find Price Sync Done in 4141
Find Price Async Done in 1033

Asynchronous execution efficiency is increased four times

Why is CompletableFuture still needed

Before JDK1.8, tasks could be run asynchronously by calling the submit method of the thread pool. This method would return a Future object, and the result of asynchronous execution could be obtained by calling the get method:

private static List<String> findPriceFutureAsync(String product) {
    ExecutorService es = Executors.newCachedThreadPool();
    List<Future<String>> futureList = shopList.stream().map(shop -> es.submit(() -> String.format("%s price is %.2f",
            shop.getName(), shop.getPrice(product)))).collect(Collectors.toList());

    return futureList.stream()
            .map(f -> {
                String result = null;
                try {
                    result = f.get();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                } catch (ExecutionException e) {
                    e.printStackTrace();
                }

                return result;
            }).collect(Collectors.toList());
}

Why do we still need to introduce CompletableFuture when there is good in it? There is no need to use Future for simple business scenarios, but if you want to combine the calculation results of multiple asynchronous tasks, and the calculation results of the latter asynchronous task require the value of the previous asynchronous task, etc., you can use the API provided by Future. It is shy and not elegant enough to handle. At this time, it is better to let CompletableFuture handle these requirements elegantly in a declarative way. Moreover, in Future programming, if you want to get the value of Future and then use this value to do subsequent calculation tasks, you can only judge whether the task is completed through polling. This takes up a lot of CPU and the code is not elegant. It is expressed in pseudo code as follows :

while(future.isDone()) {
    result = future.get();
    doSomrthingWithResult(result);
}

But CompletableFuture provides an API to help us achieve such needs

Other API introduction

Processing of whenComplete calculation results:

The previous calculation results are processed and new values cannot be returned. Three methods are provided:

//Method 1
public CompletableFuture<T> whenComplete(BiConsumer<? super T,? super Throwable> action)
//Method Two
public CompletableFuture<T> whenCompleteAsync(BiConsumer<? super T,? super Throwable> action)
//Method 3
public CompletableFuture<T> whenCompleteAsync(BiConsumer<? super T,? super Throwable> action, Executor executor)

illustrate:

• BiFunction fn parameter => defines the processing of the result

• Executor executor parameters => Custom thread pool

• Methods ending with async will perform the combined operation in a new thread

Example:

public class WhenCompleteTest {
    public static void main(String[] args) {
        CompletableFuture<String> cf1 = CompletableFuture.supplyAsync(() -> "hello");
        CompletableFuture<String> cf2 = cf1.whenComplete((v, e) ->
                System.out.println(String.format("value:%s, exception:%s", v, e)));
        System.out.println(cf2.join());
    }
}

thenApply conversion:

Pass the CompletableFuture of the previous calculation result to thenApply and return the result processed by thenApply. It can be considered that the conversion from CompletableFuture to CompletableFuture is achieved through the thenApply method. In plain English, the calculation result of CompletableFuture is used as the parameter of thenApply method, and the result processed by thenApply method is returned. Three methods are provided:

//Method 1
public <U> CompletableFuture<U> thenApply(
    Function<? super T,? extends U> fn) {
    return uniApplyStage(null, fn);
}

//Method Two
public <U> CompletableFuture<U> thenApplyAsync(
    Function<? super T,? extends U> fn) {
    return uniApplyStage(asyncPool, fn);
}

//Method 3
public <U> CompletableFuture<U> thenApplyAsync(
    Function<? super T,? extends U> fn, Executor executor) {
    return uniApplyStage(screenExecutor(executor), fn);
}

public class ThenApplyTest {
    public static void main(String[] args) throws ExecutionException, InterruptedException {
        CompletableFuture<Integer> result = CompletableFuture.supplyAsync(ThenApplyTest::randomInteger).thenApply((i) -> i * 8);
        System.out.println(result.get());
    }

    public static Integer randomInteger() {
        return 10;
    }
}

//Method 1
public CompletableFuture<Void> thenAccept(Consumer<? super T> action) {
    return uniAcceptStage(null, action);
}

//Method Two
public CompletableFuture<Void> thenAcceptAsync(Consumer<? super T> action) {
    return uniAcceptStage(asyncPool, action);
}

//Method 3
public CompletableFuture<Void> thenAcceptAsync(Consumer<? super T> action,
                                               Executor executor) {
    return uniAcceptStage(screenExecutor(executor), action);
}

public class ThenAcceptTest {
    public static void main(String[] args) {
        CompletableFuture.supplyAsync(ThenAcceptTest::getList).thenAccept(strList -> strList.stream()
                .forEach(m -> System.out.println(m)));
    }

    public static List<String> getList() {
        return Arrays.asList("a", "b", "c");
    }
}

//Method 1
public <U> CompletableFuture<U> thenCompose(
    Function<? super T, ? extends CompletionStage<U>> fn) {
    return uniComposeStage(null, fn);
}

//Method Two
public <U> CompletableFuture<U> thenComposeAsync(
    Function<? super T, ? extends CompletionStage<U>> fn) {
    return uniComposeStage(asyncPool, fn);
}

//Method 3
public <U> CompletableFuture<U> thenComposeAsync(
    Function<? super T, ? extends CompletionStage<U>> fn,
    Executor executor) {
    return uniComposeStage(screenExecutor(executor), fn);
}

public class ThenComposeTest {
    public static void main(String[] args) throws ExecutionException, InterruptedException {
        CompletableFuture<Integer> result = CompletableFuture.supplyAsync(ThenComposeTest::getInteger)
                .thenCompose(i -> CompletableFuture.supplyAsync(() -> i * 10));
        System.out.println(result.get());
    }

    private static int getInteger() {
        return 666;
    }

    private static int expandValue(int num) {
        return num * 10;
    }
}

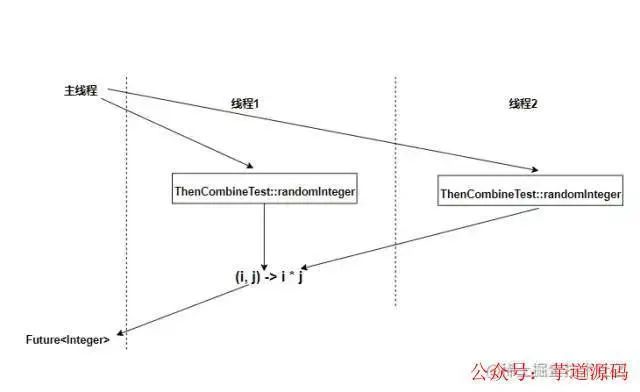

//Method 1
public <U,V> CompletableFuture<V> thenCombine(
    CompletionStage<? extends U> other,
    BiFunction<? super T,? super U,? extends V> fn) {
    return biApplyStage(null, other, fn);
}
  //Method Two
  public <U,V> CompletableFuture<V> thenCombineAsync(
      CompletionStage<? extends U> other,
      BiFunction<? super T,? super U,? extends V> fn) {
      return biApplyStage(asyncPool, other, fn);
  }

  //Method 3
  public <U,V> CompletableFuture<V> thenCombineAsync(
      CompletionStage<? extends U> other,
      BiFunction<? super T,? super U,? extends V> fn, Executor executor) {
      return biApplyStage(screenExecutor(executor), other, fn);
  }

public class ThenCombineTest {
    private static Random random = new Random();
    public static void main(String[] args) throws ExecutionException, InterruptedException {
        CompletableFuture<Integer> result = CompletableFuture.supplyAsync(ThenCombineTest::randomInteger).thenCombine(
                CompletableFuture.supplyAsync(ThenCombineTest::randomInteger), (i, j) -> i * j
        );

        System.out.println(result.get());
    }

    public static Integer randomInteger() {
        return random.nextInt(100);
    }
}

//allOf
public static CompletableFuture<Void> allOf(CompletableFuture<?>... cfs) {
    return andTree(cfs, 0, cfs.length - 1);
}
//anyOf
public static CompletableFuture<Object> anyOf(CompletableFuture<?>... cfs) {
    return orTree(cfs, 0, cfs.length - 1);
}

public class AllOfTest {
  public static void main(String[] args) throws ExecutionException, InterruptedException {
      CompletableFuture<Void> future1 = CompletableFuture.supplyAsync(() -> {
          System.out.println("hello");
          return null;
      });
      CompletableFuture<Void> future2 = CompletableFuture.supplyAsync(() -> {
          System.out.println("world"); return null;
      });
      CompletableFuture<Void> result = CompletableFuture.allOf(future1, future2);
      System.out.println(result.get());
  }
}

public class AnyOfTest {
  private static Random random = new Random();
  public static void main(String[] args) throws ExecutionException, InterruptedException {
      CompletableFuture<String> future1 = CompletableFuture.supplyAsync(() -> {
          randomSleep();
          System.out.println("hello");
          return "hello";});
      CompletableFuture<String> future2 = CompletableFuture.supplyAsync(() -> {
          randomSleep();
          System.out.println("world");
          return "world";
      });
      CompletableFuture<Object> result = CompletableFuture.anyOf(future1, future2);
      System.out.println(result.get());
 }

  private static void randomSleep() {
      try {
          Thread.sleep(random.nextInt(10));
      } catch (InterruptedException e) {
          e.printStackTrace();
      }
  }
}

public static <U> CompletableFuture<U> supplyAsync(Supplier<U> supplier) {
    return asyncSupplyStage(asyncPool, supplier);
}
static <U> CompletableFuture<U> asyncSupplyStage(Executor e, Supplier<U> f) {
    if (f == null) throw new NullPointerException();
    CompletableFuture<U> d = new CompletableFuture<U>();
    e.execute(new AsyncSupply<U>(d, f));
    return d;
}

private static final Executor asyncPool = useCommonPool?
        ForkJoinPool.commonPool() : new ThreadPerTaskExecutor();

If the article is helpful, please read it and forward it.
Thank you for your support (*^__^*)
