Matlab counts the size and number of connected components (null value areas) of the chessboard

1. Basic settings

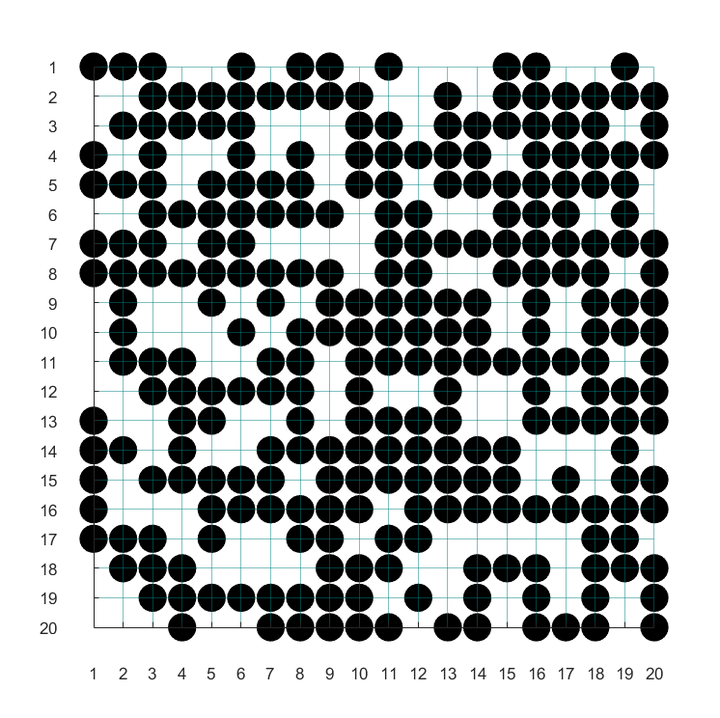

In the 20×20 chessboard matrix, set the black stone to 1 and the empty value to 0

Now it is necessary to count the size and number of null values (connected components) and mark them, as shown in the following figure:

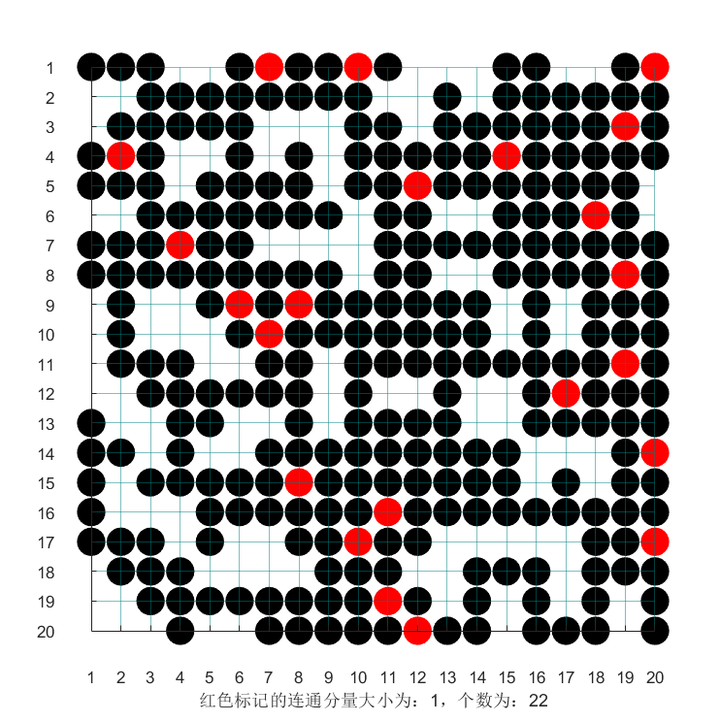

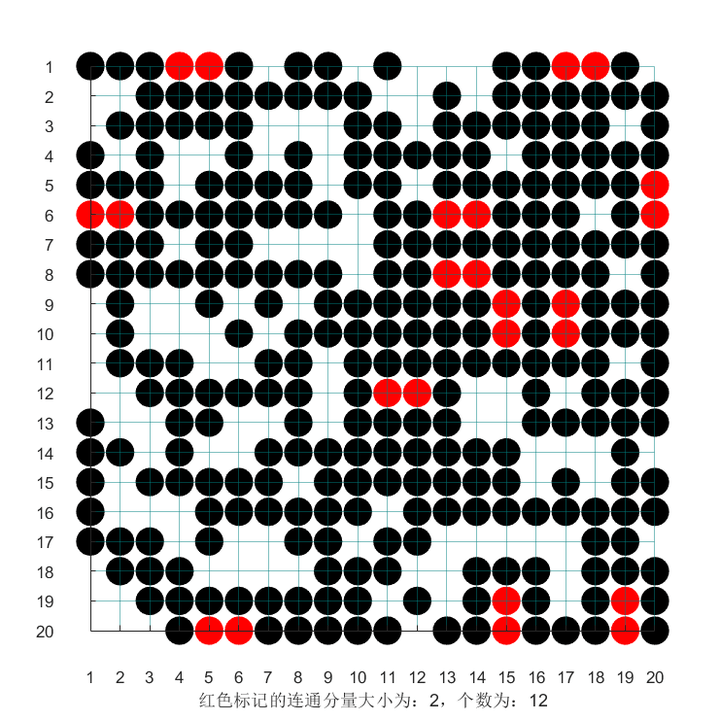

and so on

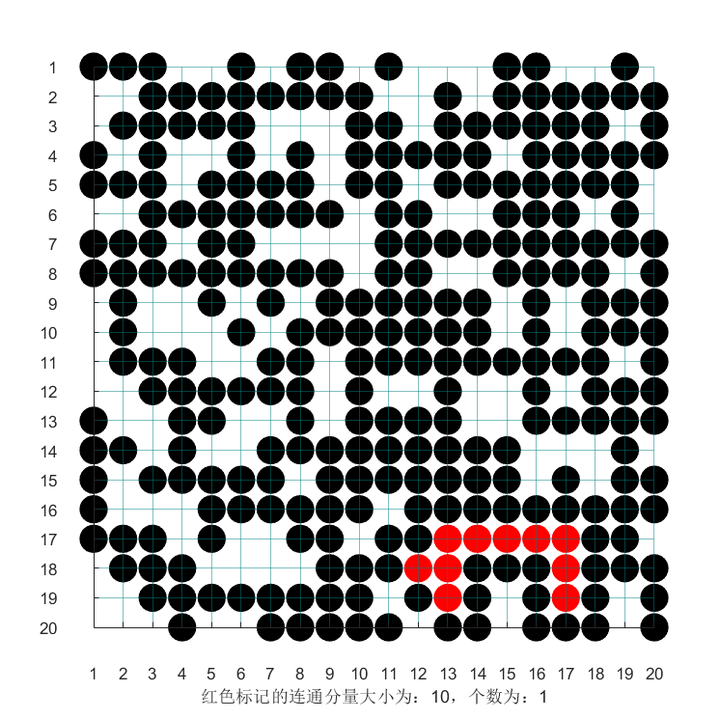

Among them, the largest connected component is as follows:

2. Matlab program

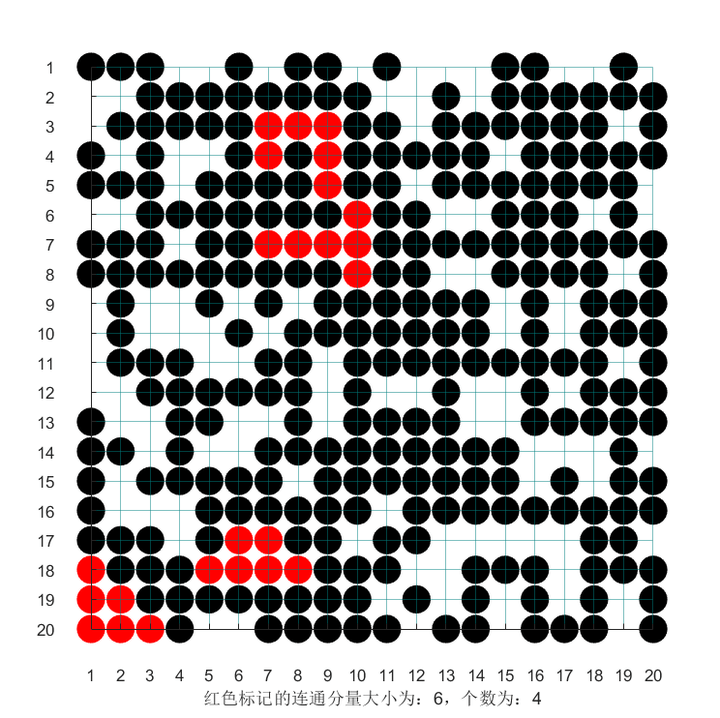

The following is a Matlab program with connected component size 6 marked in red

clear,clc,close all
m = 20;
n = 20;
markersize = floor(80-(max([m n])));
rng('default');
A = randn(m,n);
A(abs(A)<=1) = 1;
A(abs(A)>1) = 0;
Ar = 1-A;
cc4 = bwconncomp(Ar,4);
L4 = labelmatrix(cc4);

counts = [];
for i = 1:numel(cc4.PixelIdxList)
    idx = cc4.PixelIdxList{1,i};
    Ar(idx) = numel(cc4.PixelIdxList{1,i});
    counts(i) = numel(cc4.PixelIdxList{1,i});
end
size=flip(unique(counts));

fprintf('Number\t\tSize of connected components\t\tNumber\
');
for i = 1:numel(size)
    fprintf('%d\t\t\t%d\t\t\t%d\
',i,size(i),sum(counts==size(i)));
end
fprintf('Total number of connected components: %d\
',cc4.NumObjects);

mark = 6; % size of connected components to be marked
Ar(Ar~=mark)=0;
fprintf('Original chessboard matrix:\
');
disp(A); % sunspot is 1, null value is 0
fprintf('Red marked checkerboard matrix:\
');
disp(Ar); % red is 1, the rest is 0
go(A,markersize,m,n,[],[],[])
go(A,markersize,m,n,Ar,mark,sum(counts==mark))

function go(A,markersize,m,n,Ar,mark,count)
    figure('color',[1 1 1],'position',[600,100,400*1.5,400*1.5]);
    hold on
    spy(A,'k',markersize);
    spy(Ar,'r',markersize);
    axis([1 n 1 m]);
    xticks([1:n]);
    yticks([1:m]);
    xlabel("The size of the connected components marked in red is: " + mark + ", and the number is: " + count);
    ax = gca;
    ax.GridColor = [0 .5 .5];
    ax.GridLineStyle = '-';
    ax.GridAlpha = 0.5;
    ax.Layer = 'top';
    ax.XRuler.TickLabelGapOffset = 20;
    ax.YRuler.TickLabelGapOffset = 20;
    ax.YAxis.Label.Visible = 'off';
    grid on
end

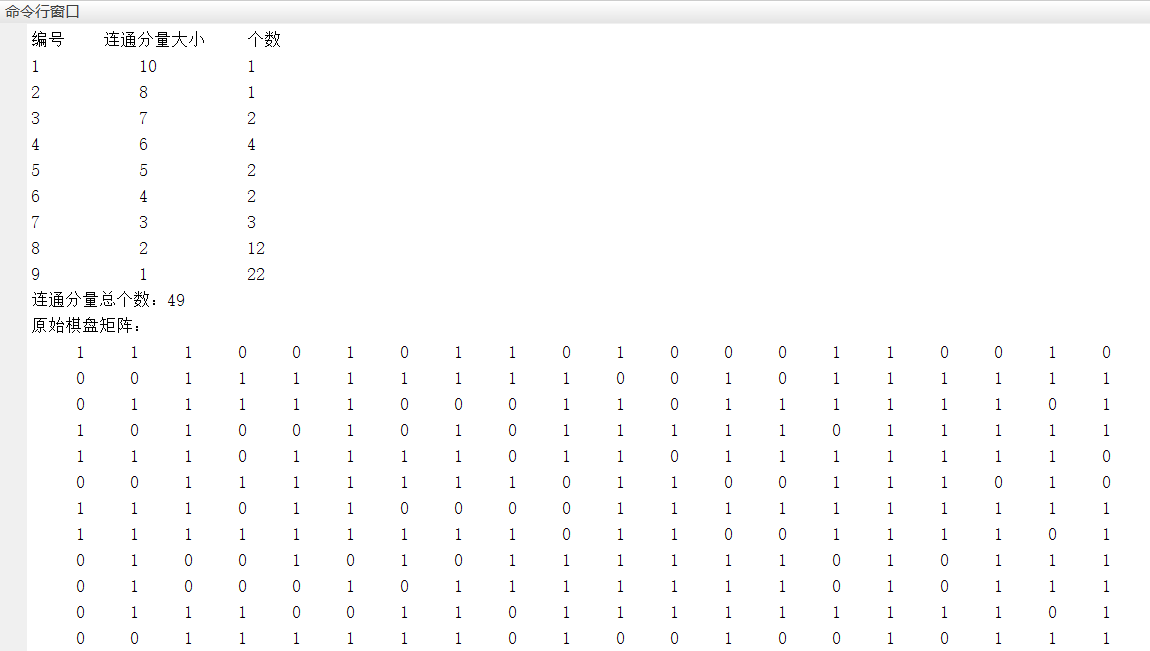

3. Output results

number connected component size number
1 10 1
2 8 1
3 7 2
4 6 4
5 5 2
6 4 2
7 3 3
8 2 12
9 1 22
Total number of connected components: 49

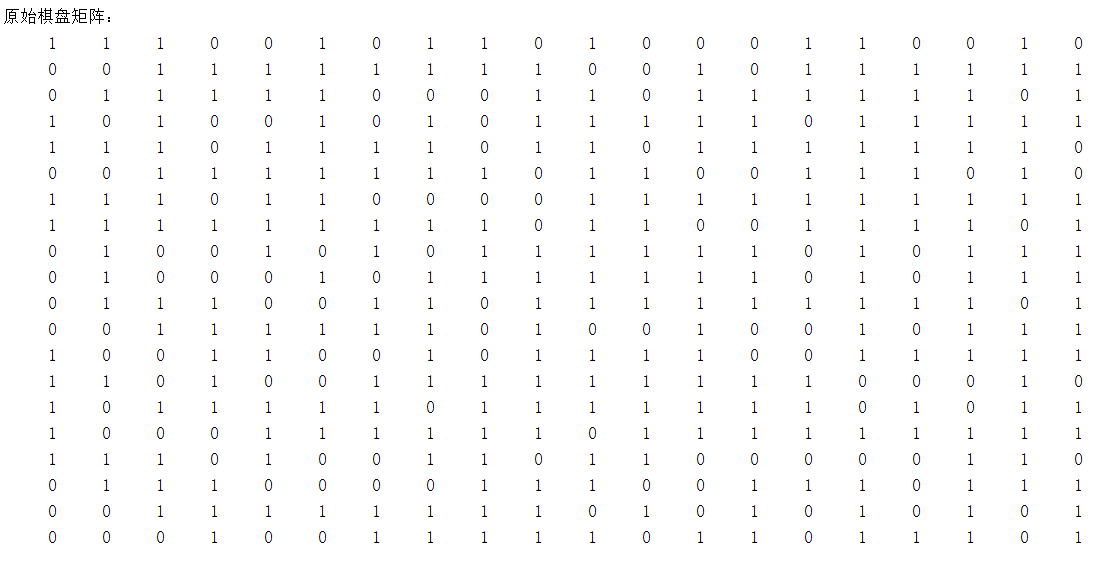

Original chessboard matrix:
     1 1 1 0 0 1 0 1 1 0 1 0 0 0 1 1 0 0 1 0
     0 0 1 1 1 1 1 1 1 1 0 0 1 0 1 1 1 1 1 1
     0 1 1 1 1 1 0 0 0 1 1 0 1 1 1 1 1 1 0 1
     1 0 1 0 0 1 0 1 0 1 1 1 1 1 0 1 1 1 1 1
     1 1 1 0 1 1 1 1 0 1 1 0 1 1 1 1 1 1 1 0
     0 0 1 1 1 1 1 1 1 0 1 1 0 0 1 1 1 0 1 0
     1 1 1 0 1 1 0 0 0 0 1 1 1 1 1 1 1 1 1 1
     1 1 1 1 1 1 1 1 1 0 1 1 0 0 1 1 1 1 0 1
     0 1 0 0 1 0 1 0 1 1 1 1 1 1 0 1 0 1 1 1
     0 1 0 0 0 1 0 1 1 1 1 1 1 1 0 1 0 1 1 1
     0 1 1 1 0 0 1 1 0 1 1 1 1 1 1 1 1 1 0 1
     0 0 1 1 1 1 1 1 0 1 0 0 1 0 0 1 0 1 1 1
     1 0 0 1 1 0 0 1 0 1 1 1 1 0 0 1 1 1 1 1
     1 1 0 1 0 0 1 1 1 1 1 1 1 1 1 0 0 0 1 0
     1 0 1 1 1 1 1 0 1 1 1 1 1 1 1 0 1 0 1 1
     1 0 0 0 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1
     1 1 1 0 1 0 0 1 1 0 1 1 0 0 0 0 0 1 1 0
     0 1 1 1 0 0 0 0 1 1 1 0 0 1 1 1 0 1 1 1
     0 0 1 1 1 1 1 1 1 1 0 1 0 1 0 1 0 1 0 1
     0 0 0 1 0 0 1 1 1 1 1 0 1 1 0 1 1 1 0 1

Checkerboard matrix marked in red:
     0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 6 6 6 0 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 6 0 6 0 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 0 0 6 0 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 0 0 0 6 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 6 6 6 6 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 0 0 0 6 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
     0 0 0 0 0 6 6 0 0 0 0 0 0 0 0 0 0 0 0 0
     6 0 0 0 6 6 6 6 0 0 0 0 0 0 0 0 0 0 0 0
     6 6 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
     6 6 6 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
