Python merges intersecting rectangular boxes of the same category

Code implementation

import os
import cv2
import json
from collections import deque
import numpy as np

def xyxy2xywh(rect):
    '''
    (x1,y1,x2,y2) -> (x,y,w,h)
    '''
    return [rect[0],rect[1],rect[2]-rect[0],rect[3]-rect[1]]

def xywh2xyxy(rect):
    '''
    (x,y,w,h) -> (x1,y1,x2,y2)
    '''
    return [rect[0],rect[1],rect[0] + rect[2],rect[1] + rect[3]]


def is_RecA_RecB_interSect(RecA, RecB): # Rec = [xmin,ymin,xmax,ymax]
    # Get [xmin, ymin, xmax, ymax] of the intersection area
    x_A_and_B_min = max(RecA[0], RecB[0])
    y_A_and_B_min = max(RecA[1], RecB[1])
    x_A_and_B_max = min(RecA[2], RecB[2])
    y_A_and_B_max = min(RecA[3], RecB[3])
    # Calculate the area of the intersection. When (xmax - xmin) is negative, it means that the A and B boxes have no intersection and are set to 0 directly. (ymax - ymin)Similarly.
    interArea = max(0, x_A_and_B_max - x_A_and_B_min) * max(0, y_A_and_B_max - y_A_and_B_min)
    return interArea > 0

def merge_RecA_RecB(RecA, RecB): # Rec = [xmin,ymin,xmax,ymax]
    # Get [xmin,ymin,xmax,ymax] of the merged area
    xmin = min(RecA[0], RecB[0])
    ymin = min(RecA[1], RecB[1])
    xmax = max(RecA[2], RecB[2])
    ymax = max(RecA[3], RecB[3])
    return [xmin,ymin, xmax,ymax]

'''
Recursion is a way for a procedure or function to call itself directly or indirectly in its definition or specification.
It usually transforms a large and complex problem into a smaller problem similar to the original problem to solve.
Therefore, the most important thing in the recursive process is to see whether the original problem can be decomposed into smaller sub-problems. This is the key to using recursion.


    Termination condition: The number of rectangular boxes is 1 or empty.
    Return value: The newly merged rectangular box
    Tasks at this level: What you need to do at each level is to traverse the subsequent rectangles starting from it and look for rectangles that can be merged with it.

'''
def merge_rect(box,labels):
    '''
    Merge overlapping boxes

    Input parameters: box :[[xmin,ymin,xmax,ymax],...]
            labels :['0', '0', '1', '1', '1', '2', '2', '2' ]

    return:
        Merged box:[[xmin,ymin,xmax,ymax],...]
        Merged labels:['0', '1', '2']
    '''
    if len(box) == 1 or len(box) == 0 : # The number of rectangular boxes is 1 or empty
        return box,labels

    for i in range(len(box)):
        RecA_xyxy = box[i]
        labelA = labels[i]
        for j in range(i + 1, len(box)):
            RecB_xyxy = box[j]
            labelB = labels[i]
            if is_RecA_RecB_interSect(RecA_xyxy, RecB_xyxy) and labelA==labelB:
                rect_xyxy = merge_RecA_RecB(RecA_xyxy, RecB_xyxy)
                # Use remove(elem) to remove elements
                box.remove(RecA_xyxy)
                box.remove(RecB_xyxy)
                box.append(rect_xyxy)
                labels.pop(i)
                labels.pop(j-1)
                labels.append(labelA)
                merge_rect(box,labels)
                # Return to the previous loop to avoid repeated processing of merged rectangles
                return box,labels
    return box,labels



if __name__ == "__main__":
    color = {<!-- -->
        '0' : (255,0,0),
        '1' : (0,255,0),
        '2' : (0,0,255),
    }

    box = [[71, 32, 81, 109], [70, 80, 81, 111], [77, 221, 86, 240], [76, 220, 87, 258],
           [76, 240, 87, 258], [150, 379, 160, 400], [151, 380, 160, 418], [151, 400, 160, 416]]
    labels = ['0', '0', '1', '1', '1', '2', '2', '2' ]
    print(labels,box,sep='\\
')


    img = cv2.imread('res.png')

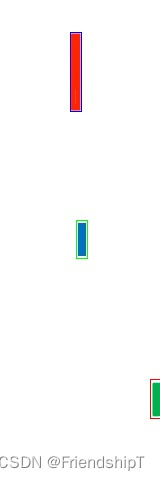

    for (xmin,ymin,xmax,ymax),label in zip(box,labels):
        img = cv2.rectangle(img, (xmin,ymin), (xmax,ymax), color[label], 1)
    cv2.imwrite('origin.jpg', img)


    merged_box,merged_labels = merge_rect(box,labels)
    print(merged_labels,merged_box,sep='\\
')

    merged_img = cv2.imread('res.png')

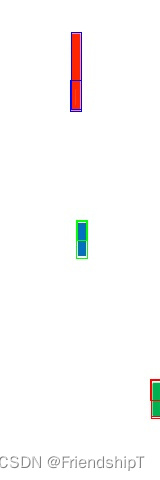

    for (xmin,ymin,xmax,ymax),label in zip(merged_box,merged_labels):
        merged_img = cv2.rectangle(merged_img, (xmin,ymin), (xmax,ymax), color[label], 1)
    cv2.imwrite('merged.jpg', merged_img)
