nanodet trains its own data set and deploys NCNN to Android
-
- 1. Introduction
- 2. Train your own data set
-
- 1. Operating environment
- 2. Dataset
- 3. Configuration file
- 4. Training
- 5. Training visualization
- 6. Test
- 3. Deploy to android
-
- 1. Deploy using official weight files
-
- 1.1 Download weight file
- 1.2 Use Android Studio to deploy apk
- 2. Deploy your own model [Temporary problem]
-
- 2.1 Generate ncnn model
- 2.2 Deploy to android
1. Introduction
Read the author’s own introduction
NanoDet-Plus Zhihu Chinese Introduction
NanoDet Zhihu Chinese introduction
2. Train your own data set
1. Operating environment
conda create -n nanodet python=3.8 -y conda activate nanodet conda install pytorch torchvision cudatoolkit=11.1 -c pytorch -c conda-forge git clone https://github.com/RangiLyu/nanodet.git cd nanodet pip install -r requirements.txt python setup.py develop
2. Dataset
This example finally uses annotation files in coco format, and a voc to coco script is provided below.
import os from tqdm import tqdm import xml.etree.ElementTree as ET import json class_names = ["cat", "bird", "dog"] def voc2coco(data_dir, train_path, val_path): xml_dir = os.path.join(data_dir, 'Annotations') img_dir = os.path.join(data_dir, 'JPEGImages') train_xmls = [] for f in os.listdir(train_path): train_xmls.append(os.path.join(train_path, f)) val_xmls = [] for f in os.listdir(val_path): val_xmls.append(os.path.join(val_path, f)) print('got xmls') train_coco = xml2coco(train_xmls) val_coco = xml2coco(val_xmls) with open(os.path.join(data_dir, 'coco_train.json'), 'w') as f: json.dump(train_coco, f, ensure_ascii=False, indent=2) json.dump(val_coco, f, ensure_ascii=False, indent=2) print('done') def xml2coco(xmls): coco_anno = {<!-- -->'info': {<!-- -->}, 'images': [], 'licenses': [], 'annotations': [], 'categories': [ ]} coco_anno['categories'] = [{<!-- -->'supercategory': j, 'id': i + 1, 'name': j} for i, j in enumerate(class_names)] img_id = 0 anno_id = 0 for fxml in tqdm(xmls): try: tree = ET.parse(fxml) objects = tree.findall('object') except: print('err xml file: ', fxml) continue if len(objects) < 1: print('no object in ', fxml) continue img_id + = 1 size = tree.find('size') ih = float(size.find('height').text) iw = float(size.find('width').text) img_name = fxml.strip().split('/')[-1].replace('xml', 'jpg') img_name = img_name.split('') img_name = img_name[-1] img_info = {<!-- -->} img_info['id'] = img_id img_info['file_name'] = img_name img_info['height'] = ih img_info['width'] = iw coco_anno['images'].append(img_info) for obj in objects: cls_name = obj.find('name').text if cls_name == "water": continue bbox = obj.find('bndbox') x1 = float(bbox.find('xmin').text) y1 = float(bbox.find('ymin').text) x2 = float(bbox.find('xmax').text) y2 = float(bbox.find('ymax').text) if x2 < x1 or y2 < y1: print('bbox not valid: ', fxml) continue anno_id + = 1 bb = [x1, y1, x2 - x1, y2 - y1] category_id = class_names.index(cls_name) + 1 area = (x2 - x1) * (y2 - y1) anno_info = {<!-- -->} anno_info['segmentation'] = [] anno_info['area'] = area anno_info['image_id'] = img_id anno_info['bbox'] = bb anno_info['iscrowd'] = 0 anno_info['category_id'] = category_id anno_info['id'] = anno_id coco_anno['annotations'].append(anno_info) return coco_anno if __name__ == '__main__': save_dir = './datasets/annotations' # Path to save json files train_dir = './datasets/annotations/train/' # Storage path of training set xml file val_dir = './datasets/annotations/val/' # Storage path of verification set xml file voc2coco(save_dir, train_dir, val_dir)
The path to the final data set is as follows:
-datasets |--images | |--train | | |--00001.jpg | | |--00004.jpg | | |--... | |--val | | |--00002.jpg | | |--00003.jpg | | |--... |--annatotions | |--coco_train.json | |--coco_val.json
3. Configuration file
Take nanodet-m-416.yml
as an example, mainly modify the following parts according to your own data set
model: head: num_classes: 3 # Number of categories in the data set \t\t data: train: img_path: F:/datasets/images/train # Training set image path ann_path: F:/datasets/annotations/coco_train.json #Training set json file path val: img_path: F:/datasets/images/val #Verification set image path ann_path: F:/datasets/annotations/coco_val.json # Verification set json file path device: gpu_ids: [0] # GPU workers_per_gpu: 8 # Number of threads batchsize_per_gpu: 60 # batch size schedule: total_epochs: 280 #Total number of epochs val_intervals: 10 # Output the recognition results of the verification set every 10 epochs class_names: ["cat", "bird", "dog"] # Dataset category
4. Training
python tools/train.py config/legacy_v0.x_configs/nanodet-m-416.yml
If training is interrupted midway, you need to continue training. First modify the nanodet-m-416.yml
to remove the two lines of comments resume
and load_model
, and add model_last.ckpt Add the path to code> (note to check whether the indentation of these two lines is correct after removing the comments), and then
python tools/train.py config/legacy_v0.x_configs/nanodet-m-416.yml
.
schedule: resume: load_model: F:/nanodet/workspace/nanodet_m_416/model_last.ckpt optimizer: name:SGD lr: 0.14 momentum: 0.9 weight_decay: 0.0001
Error reported:
OSError: [WinError 1455] The page file is too small and the operation cannot be completed. Error loading "F:\Anaconda3\envs\ nanodet\lib\site-packages\torch\lib\shm.dll" or one of its dependencies.Solution: Reduce the number of threads in the configuration file
workers_per_gpu
, or directly set it to 0 without using parallelism.
5. Training visualization
TensorBoard logs are saved in the path ./nanodet/workspace/nanodet_m_416
. The visualization command is as follows:
tensorboard --logdir=./nanodet/workspace/nanodet_m_416
6. Test
method one:
python demo/demo.py image --config config/legacy_v0.x_configs/nanodet-m-416.yml --model nanodet_m_416.ckpt --path test.jpg
Method Two:
Run the demo\demo-inference-with-pytorch.ipynb
script (modify the code from demo.demo import Predictor
to from demo import Predictor
)
3. Deploy to android
1. Deploy using official weight files
1.1 Download weight file
1) Create a new folder assets
under the path F:\
;
anodet\demo_android_ncnn\app\src\main
2) Combine nanodet-plus-m_416.bin
in the path of F:\
with Copy
anodet\demo_android_ncnn\app\src\main\cpp\
cnn-20211208-android-vulkannanodet-plus-m_416.param
to F:\
and rename it to
anodet\demo_android_ncnn\app\src\main\assetsnanodet.bin
and nanodet.param
;
3) (Optional) Download the ncnn models of Yolov4 and v5 to the F:\
path;
anodet\demo_android_ncnn\app\src\main\assets
1.2 Deploy apk using Android Studio
Use Android Studio to open the F:\
folder and select the corresponding Platforms according to your Android version. It is worth noting that the NDK needs to be installed with the
anodet\demo_android_ncnn21.0.6113669
version. , otherwise an error similar to "No version of NDK matched the requested version 21.0.6113669. Versions available locally: 21.3.6528147
" will be reported. [Detailed operations can be found in Section 1.2 of my previous article: [Terminal Target Detection 01] Deploying YOLOX to Android based on NCNN]

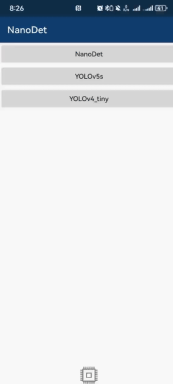

Deployment results:
2. Deploy your own model [temporary problem]
2.1 Generate ncnn model
- First convert to onnx file:
python tools/export_onnx.py --cfg_path config\legacy_v0.x_configs\ anodet-m-416.yml --model_path nanodet_m_416.ckpt
- Then convert to ncnn model:
Use online conversion https://convertmodel.com/
Place the converted bin and param files in the assets folder. You can rename them to nanodet.bin and nanodet.param, or you can modify the NanoDet::detector = in the
jni_interface.cpp
file. new NanoDet(mgr, "nanodet_self-sim-opt.param", "nanodet_self-sim-opt.bin", useGPU);
2.2 Deployment to android
I used nanodet-m-416.yml
to train my own model, and modified the hyperparameters in nanodet.h
according to the official documents, make project
Neither code> nor run app
reported an error, but there was a problem with the recognition when running the program on the phone (the category is not the category of my own data set), and the problem has not been found yet.
