1, vivado build
Check the configuration of the PS network port or PL network port, and import the SDK, create a new lwip routine library, and it can be pinged.
2. SDK environment configuration

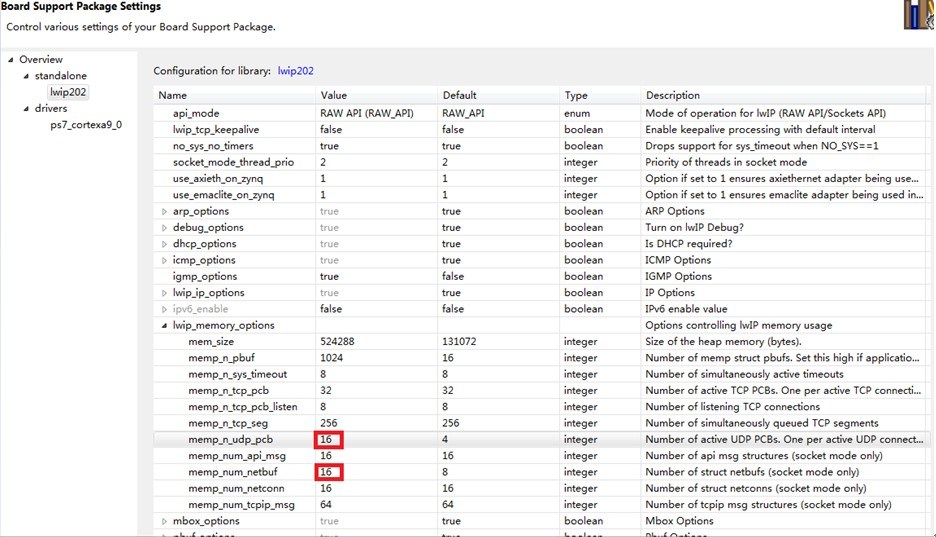

Create a new lwip echo server routine, add system.mss->modify BSP’s Settings in the bsp environment
lwip202->iggmp_options->true
3, main.c
#include <stdio.h> #include "xparameters.h" #include "netif/xadapter.h" #include "platform.h" #include "platform_config.h" #if defined (__arm__) || defined(__aarch64__) #include "xil_printf.h" #endif #include "lwip/tcp.h" #include "xil_cache.h" #if LWIP_DHCP==1 #include "lwip/dhcp.h" #endif #if LWIP_IGMP #include "lwip/igmp.h" #endif #include "sleep.h" /* defined by each RAW mode application */ void print_app_header(); int start_application(); int transfer_data(); /* missing declaration in lwIP */ void lwip_init(); #if LWIP_DHCP==1 extern volatile int dhcp_timoutcntr; err_t dhcp_start(struct netif *netif); #endif extern volatile int TcpFastTmrFlag; extern volatile int TcpSlowTmrFlag; extern volatile int udp_Flag; volatile int udp_revflag = 0; static struct netif server_netif; struct netif *echo_netif; void print_ip(char *msg, struct ip_addr *ip) { print(msg); xil_printf("%d.%d.%d.%d\\ \r", ip4_addr1(ip), ip4_addr2(ip), ip4_addr3(ip), ip4_addr4(ip)); } void print_ip_settings(struct ip_addr *ip, struct ip_addr *mask, struct ip_addr *gw) { print_ip("Board IP: ", ip); print_ip("Netmask : ", mask); print_ip("Gateway : ", gw); } #if defined (__arm__) || defined(__aarch64__) #if XPAR_GIGE_PCS_PMA_SGMII_CORE_PRESENT == 1 || XPAR_GIGE_PCS_PMA_1000BASEX_CORE_PRESENT == 1 int ProgramSi5324(void); int ProgramSfpPhy(void); #endif #endif #define UDP_MULTICAST_LOCAL_PORT 8000 // local port #define UDP_MULTICAST_REMOTE_PORT 8000// target port #define UDP_RX_BUFFSIZE 1000 char udp_recvbuf[UDP_RX_BUFFSIZE]; static struct ip_addr ipgroup; static struct udp_pcb *g_udppcb; void udp_recv_hy(void *arg, struct udp_pcb *pcb, struct pbuf *p, struct ip_addr *addr ,u16_t port) { u16 data_len = 0; u32 remote[4] = {0}; int i = 0; if (p != NULL) { memset(udp_recvbuf, 0, UDP_RX_BUFFSIZE); if (p->len > UDP_RX_BUFFSIZE ) { memcpy(udp_recvbuf, p->payload,UDP_RX_BUFFSIZE); data_len = UDP_RX_BUFFSIZE; } else { memcpy(udp_recvbuf, p->payload, p->len); data_len = p‐>len; } #if 1 printf( "\\ len : %d , data: %s \\ ", data_len,udp_recvbuf); #endif /* record the remote host address */ remote[0] = addr->addr & 0xff; remote[1] = (addr‐>addr >> 8) & 0xff; remote[2] = ( addr‐>addr >> 16 ) & 0xff; remote[3] = ( addr‐>addr >> 24) & 0xff; printf("remote IP : "); for (i = 0 ; i < 4; i ++ ) { if (i < 3) printf("%d.",(int)remote[i]); else printf("%d \\ ",(int)remote[i]); } /* record the remote port */ printf("remote Port : %d \\ ", port); pbuf_free(p); udp_revflag = 1; } else { udp_disconnect(pcb); udp_revflag = 0; } } /* * Multicast sending function * */ void udp_send_hy(unsigned char *data, unsigned short len, u16 port) { err_t err; struct pbuf *p = pbuf_alloc(PBUF_TRANSPORT, len, PBUF_RAM); unsigned char *data2 = "hello"; u32 remote_addr[4] = { 0 }; int i ; if (p) { memcpy(p‐>payload, data, len); err = udp_sendto(g_udppcb, p , &ipgroup, port ); #if 0 err = udp_send(g_udppcb, p ); remote_addr[0] = g_udppcb->remote_ip.addr & amp; & amp; 0xff ; remote_addr[1] = (g_udppcb‐>remote_ip.addr >> 8) & amp; & amp; 0xff; remote_addr[2] = (g_udppcb‐>remote_ip.addr >> 16) & amp; & amp; 0xff; remote_addr[3] = (g_udppcb‐>remote_ip.addr >> 24) & amp; & amp; 0xff; printf("remote_addr : "); for (i = 0 ; i < 4; i ++ ) { if (i < 3) printf("%d.",(int)remote_addr[i]); else printf("%d \\ ",(int)remote_addr[i]); } if (err != ERR_OK) { printf("udp_send error \\ "); return; } #endif pbuf_free(p); } } /* Multicast initialization */ void UDP_Multicast(void) { char msg[] = "gaurav"; err_t err; struct pbuf *p; p = pbuf_alloc(PBUF_TRANSPORT, sizeof(msg),PBUF_RAM); memcpy(p->payload, msg, sizeof(msg)); IP4_ADDR( &ipgroup, 239, 0, 1, 2); #if LWIP_IGMP err = igmp_joingroup(IP_ADDR_ANY , (struct ip_addr*)( &ipgroup)); // Only need to put the receiving address into the igmp group, not the sending one if (ERR_OK != err) { printf("LWIP_IGMP err = %d \\ ", err); return; } #endif g_udppcb = (struct udp_pcb*)udp_new(); udp_bind(g_udppcb, IP_ADDR_ANY, UDP_MULTICAST_LOCAL_PORT); udp_recv(g_udppcb, udp_recv_hy, NULL); } int main() { unsigned char str[6]="hello"; unsigned char *data=str; #if __aarch64__ Xil_DCacheDisable(); #endif struct ip_addr ipaddr, netmask, gw; /* the mac address of the board. this should be unique per board */ unsigned char mac_ethernet_address[] ={ 0x00, 0x0a, 0x35, 0x00, 0x01, 0x02 }; echo_netif = & server_netif; #if defined (__arm__) || defined(__aarch64__) #if XPAR_GIGE_PCS_PMA_SGMII_CORE_PRESENT == 1 || XPAR_GIGE_PCS_PMA_1000BASEX_CORE_PRESENT == 1 ProgramSi5324(); ProgramSfpPhy(); #endif #endif init_platform(); /* initliaze IP addresses to be used */ IP4_ADDR( & ipaddr, 192, 168, 1, 10); IP4_ADDR( & netmask, 255, 255, 255, 0); IP4_ADDR( & gw, 192, 168, 1, 1); lwip_init(); /* Add network interface to the netif_list, and set it as default */ if (!xemac_add(echo_netif, &ipaddr, &netmask, &gw, mac_ethernet_address, PLATFORM_EMAC_BASEADDR)) { xil_printf("Error adding N/W interface\\ \r"); return -1; } netif_set_default(echo_netif); /* now enable interrupts */ platform_enable_interrupts(); /* specify that the network if is up */ netif_set_up(echo_netif); print_ip_settings( &ipaddr, &netmask, &gw); UDP_Multicast(); while (1) { /* Timer send regularly */ if (udp_Flag) { printf("start send to 20480 \\ "); udp_send_hy(data,6,UDP_MULTICAST_REMOTE_PORT); sleep(2); printf("start send to 8000 \\ "); udp_send_hy(data,6,8000); udp_Flag = 0; } xemacif_input(echo_netif); transfer_data(); } /* never reached */ cleanup_platform(); return 0; }
4. Turn off the MAC filtering function: open the file xemacps.c in the SDK project directory
Modify in function XEmacPs_Reset:
Add options in the XEmacPs_SetOptions function–“XEMACPS_PROMISC_OPTION” So far, the multicast function should be realized.
5. Configure multi-port multicast receiving or sending, and you can open up to 16 different port numbers for receiving and 16 different port numbers for sending
uint32_t SendAddr[4] = {226, 0, 0, 22}; g_Send_Computer.addr = (SendAddr[3]<<24) + (SendAddr[2]<<16) + (SendAddr[1]<<8) + (SendAddr[0]); igmp_joingroup(IP_ADDR_ANY, &g_Send_Computer); g_Send_pcb_send1 = udp_new(); g_Send_pcb_send2 = udp_new(); g_send_pcb_send3 = udp_new(); g_send_pcb_send4 = udp_new(); g_send_pcb_send5 = udp_new(); g_send_pcb_send6 = udp_new(); g_send_pcb_send7 = udp_new(); g_Receive_pcb_1 = udp_new(); g_Receive_pcb_2 = udp_new(); g_Receive_pcb_3 = udp_new(); g_Receive_pcb_4 = udp_new(); g_Receive_pcb_5 = udp_new(); g_Receive_pcb_6 = udp_new(); g_Receive_pcb_7 = udp_new(); g_Receive_pcb_8 = udp_new(); udp_bind(g_Send_pcb_send1, IP_ADDR_ANY, 6006);//6006 udp_bind(g_Send_pcb_send2, IP_ADDR_ANY, 6007);//6007 udp_bind(g_send_pcb_send3, P_ADDR_ANY, 6008); udp_bind(g_send_pcb_send4, IP_ADDR_ANY, 6009); udp_bind(g_send_pcb_send5, IP_ADDR_ANY, 6010); udp_bind(g_send_pcb_send6, IP_ADDR_ANY, 6011); udp_bind(g_send_pcb_send7, IP_ADDR_ANY, 6012); udp_bind(g_Receive_pcb_1, IP_ADDR_ANY, 8001); udp_bind(g_Receive_pcb_2, IP_ADDR_ANY, 8002); udp_bind(g_Receive_pcb_3, IP_ADDR_ANY, 8003);//8003 udp_bind(g_Receive_pcb_4, IP_ADDR_ANY, 8004);//8004 udp_bind(g_Receive_pcb_5, IP_ADDR_ANY, 8005);//8005 udp_bind(g_Receive_pcb_6, IP_ADDR_ANY, 8006);//8006 udp_bind(g_Receive_pcb_7, IP_ADDR_ANY, 8007);//8007 udp_bind(g_Receive_pcb_7, IP_ADDR_ANY, 8008);//8008 udp_recv(g_Receive_pcb_1, (udp_recv_fn)udp_frame_rev_com0, NULL); udp_recv(g_Receive_pcb_2, (udp_recv_fn)udp_frame_rev_com1, NULL); udp_recv(g_Receive_pcb_3, (udp_recv_fn)udp_frame_rev_com2, NULL); udp_recv(g_Receive_pcb_4, (udp_recv_fn)udp_frame_rev_com3, NULL); udp_recv(g_Receive_pcb_5, (udp_recv_fn)udp_frame_rev_com4, NULL); udp_recv(g_Receive_pcb_6, (udp_recv_fn)udp_Receive_frame_com5, NULL); udp_recv(g_Receive_pcb_7, (udp_recv_fn)udp_Receive_frame_com6, NULL); udp_recv(g_Receive_pcb_8, (udp_recv_fn)udp_Receive_frame_com7, NULL); Send_udp_zubo(p_sendImageToPC, g_send_pcb_test4_between_missile, pp, 8001, len); void Send_udp_zubo(struct pbuf* p_sendTopc, struct udp_pcb* pcb, unsigned char* pData, unsigned short port, unsigned int len) { p_sendTopc->len = len; p_sendTopc->tot_len = len; p_sendTopc->payload = pData; udp_sendto(pcb, p_sendTopc, &g_Send_Computer_ipAddr, port); }
