There are many injection methods for processes under Windows
There are several more general ones like APC injection and KernelCallbackTable injection. Here is a combination of actual reference to github code and some optimized projects to realize it, and then better understand and learn these two injection methods and their operability.
APC Code Injection
First, let’s introduce some details of APC APC injection and the implementation process, such as enumerating threads, the difference between user mode and kernel mode APC, etc. This is convenient for a better understanding of the implementation principle and subsequent improvements of APC injection.
Windows kernel mode uses APC to complete asynchronously started I/O operations, thread suspension and other behaviors
APC is (Asynchronous Procedure Call) refers to asynchronous procedure call
APC allows user programs and system components to execute code in the context of a specific thread, so the code will be executed in the address space of a specific process. There are two main DLLs related to APC injection: Kernel32.dll and Ntdll.dll
The relevant functions mainly include the following
`
CreateToolhelp32Snapshot, Process32First, Process32Next, Thread32First, Thread32Next, OpenProcess, OpenThread, DuplicateHandle, GetCurrentProcess, WriteProcessMemory, VirtualProtectEx, QueueUserAPC, ResumeThread, NtAllocateVirtualMemory
The above functions will be used in the APC injection process. There are several functions that may not be common in other injection methods. It is necessary to understand the functions of the functions. For example, QueueUserAPC — adds a user-mode asynchronous procedure call (APC) object to the APC queue of the specified thread, and ResumeThread — decrements the thread’s suspension count. When the suspend count is decremented to zero, the thread’s execution will resume
Each thread has a queue that stores all APCs, threads can execute code in the process, and threads can use the APC queue to execute code asynchronously
Interruption
APC is divided into two types user mode APC and kernel mode APC
User-mode APC is executed in user space in the process context of the target thread, which requires the target thread to be in a changeable waiting state, and kernel-mode APC is executed in kernel space. At this time, it can be divided into regular APC and special APC.
Both kernel/user APCs have three functions:
● KernelRoutine: the function will be executed in kernel space (IRQL= PASSIVE_LEVEL if normal kernel APC and user APC, IRQL=APC_LEVEL if special kernel APC, thus creating thread with number to suspend all other CPUs on the system , and each thread raises the IRQL to DISPATCH_LEVEL, and then raises the IRQL on the current processor to DISPATCH_LEVEL, so that it will not be interrupted by the Windows kernel or any other driver, and since the APC is dispatched at APC_LEVEL or PASSIVE_LEVEL, the APC is dispatched at Does not change during APC enumeration.)
● RundownRoutine: If the thread terminates before reaching the APC, this function will be called in kernel space
● NormalRoutine: If it is a kernel mode APC, this function will be called in the kernel space, and if it is a user mode APC, it will be called in the user space.
Each thread has two members of type _KAPC_STATE in the _KTHREAD data structure, named ApcState and SavedApcState
● ApcState: Whether the thread is attached to its own process or another process is in use
● SavedApcState: used to store the APC of the process context that is not the current context and must wait (for example: when the thread is attached to another process, the APC is queued for its own process)
The _KAPC_STATE structure has a member called ApcListHead which is two LIST_ENTRY structures considered as the list head for kernel APCs and user APCs and will be used to queue APCs for threads
Windbg kernel debugging can get _KAPC_STATE
0: kd> dt nt!_KTHREAD
+ 0x000 Header : _DISPATCHER_HEADER
+ 0x018 SListFaultAddress : Ptr64 Void
................................................... .....
+ 0x098 ApcState : _KAPC_STATE
+ 0x098 ApcStateFill : [43] UChar
+ 0x0c3 Priority : Char
+ 0x0c4 UserIdealProcessor : Uint4B
+ 0x0c8 WaitStatus : Int8B
+ 0x0d0 WaitBlockList : Ptr64 _KWAIT_BLOCK
+ 0x0d8 WaitListEntry : _LIST_ENTRY
................................................... .....
+ 0x258 SavedApcState : _KAPC_STATE
+ 0x258 SavedApcStateFill : [43] UChar
+ 0x283 WaitReason : UChar
+ 0x284 SuspendCount : Char
+ 0x285 Saturation : Char
0: kd> dt nt!_KAPC_STATE
+ 0x000 ApcListHead : [2] _LIST_ENTRY ! Here is the queue head of kernel or user mode APC
+ 0x020 Process : Ptr64 _KPROCESS
+ 0x028 InProgressFlags : UChar
+ 0x028 KernelApcInProgress : Pos 0, 1 Bit
+ 0x028 SpecialApcInProgress : Pos 1, 1 Bit
+ 0x029 KernelApcPending : UChar
+ 0x02a UserApcPendingAll : UChar
+ 0x02a SpecialUserApcPending : Pos 0, 1 Bit
+ 0x02a UserApcPending : Pos 1, 1 Bit
(Threads execute code in-process Threads can utilize APC queues to execute code asynchronously Each thread has a queue storing all apcs Applications can queue APCs to a given thread (depending on privileges) )
Enumeration: Enumerate all thread IDs in the process
Now we know that the APC queue exists in the thread in the process, so we need to get the process thread list from the _KPROCESS structure, then go to the thread to get the _KTHREAD structure, then get the _KAPC_STATE structure from the _KTHREAD structure and then parse the kernel APC or user mode APC. But the problem is that with different versions of windows, the offset will change. If you make a mistake, it may cause BOSD! So this method requires us to get the offset values of different Windows versions
We can also enumerate thread IDs from user mode processes
Then we need to complete the acquisition of all thread IDs in the target process
two methods
● ZwQuerySystemInformation and SystemProcessInformation as SystemInformationClass parameter
● CreateToolhelp32Snaphot ->Thread32First ->Thread32Next
Enumerate thread ID codes (CreateToolhelp32Snaphot method shown here)
hThreadSnap = CreateToolhelp32Snapshot(TH32CS_SNAPTHREAD, 0);
if (hThreadSnap == INVALID_HANDLE_VALUE)
return(FALSE);
te32.dwSize = sizeof(THREADENTRY32);
if (!Thread32First(hThreadSnap, & amp;te32)) {<!-- -->
//Error calling Thread32First
CloseHandle(hThreadSnap);
return(FALSE);
}
do
{<!-- -->
if (te32.th32OwnerProcessID == dwOwnerPID)
{<!-- -->
printf(TEXT("THREAD ID = 0x X"), te32.th32ThreadID);
printf(TEXT("base priority = %d"), te32.tpBasePri);
printf(TEXT("delta priority = %d"), te32.tpDeltaPri);
Threadarray[counter]= te32.th32ThreadID;
counter + + ;
}
} while (Thread32Next(hThreadSnap, & te32));
The above interpolation shows some pre-knowledge about APC in user mode and kernel mode, and also explains the structure used in the process of enumerating threads, etc., and then let’s take a look at the process of implementing APC injection.
Steps of APC injection (the process required to complete a standard apc injection)
First identify and find the process (PID) you want to inject
Allocate memory in the memory space of the process
Write the shellcode you prepared into the memory space you allocated
Then find and traverse all the threads in the process (the enumeration introduced in the above episode is easy to understand if it is implemented here)
Queue APC functions in all threads
Finally the APC function points to the put Shellcode (the thread resumes and executes the Shellcode)
Don’t confuse processes with threads here
Then when the thread in the process is called, it also means that the APC function we put in the thread queue will also be called, and the Shellcode will be executed at this time
But there is a flaw in this method that the malicious program cannot force the victim thread to execute the injected code.
But it can also fix this defect. Its method is called Early Bird APC Queue Code Injection
Early Bird APC Queue Code Injection differs from traditional APC Code Injection in that it occurs during process initialization
That is to create a new legal process in the suspended state
BOOL creationResult;
creationResult = CreateProcess(
NULL, // No module name (use command line)
cmdLine, //Command line
NULL, // Process handle not inheritable
NULL, // Thread handle not inheritable
FALSE, // Set handle inheritance to FALSE
NORMAL_PRIORITY_CLASS | CREATE_NEW_CONSOLE | CREATE_NEW_PROCESS_GROUP, // creation flags
NULL, // Use parent's environment block
NULL, // Use parent's starting directory
& amp;startupInfo, // Pointer to STARTUPINFO structure
& amp;processInformation); // Pointer to PROCESS_INFORMATION structure
In this way, when we perform APC injection, the thread is always in the suspended state.
Then, because the APC injection design modifies the memory area for storing data, it is necessary to modify the protection attribute, and then roughly talk about the meaning of the protection attribute.
The memory page protection attributes are PAGE_NOACCESS, PAGE_READONLY, PAGE_READWRITE, PAGE_EXECUTE, PAGE_EXECUTE_READ, PAGE_EXECUTE_READWRITE, PAGE_WRITECOPY, PAGE_EXECUTE_WRITECOPY.
Some malware writes code to areas of memory used for data (such as on thread stacks), and in this way makes the application execute malicious code. The Windows Data Execution Prevention feature provides protection against such malicious attacks. If DEP is enabled, the operating system pageexecute* protects attributes only for memory areas that actually need to be executed. Other protection attributes (the most common being PAGE_READWRITE) are used for areas of memory that should only hold data.

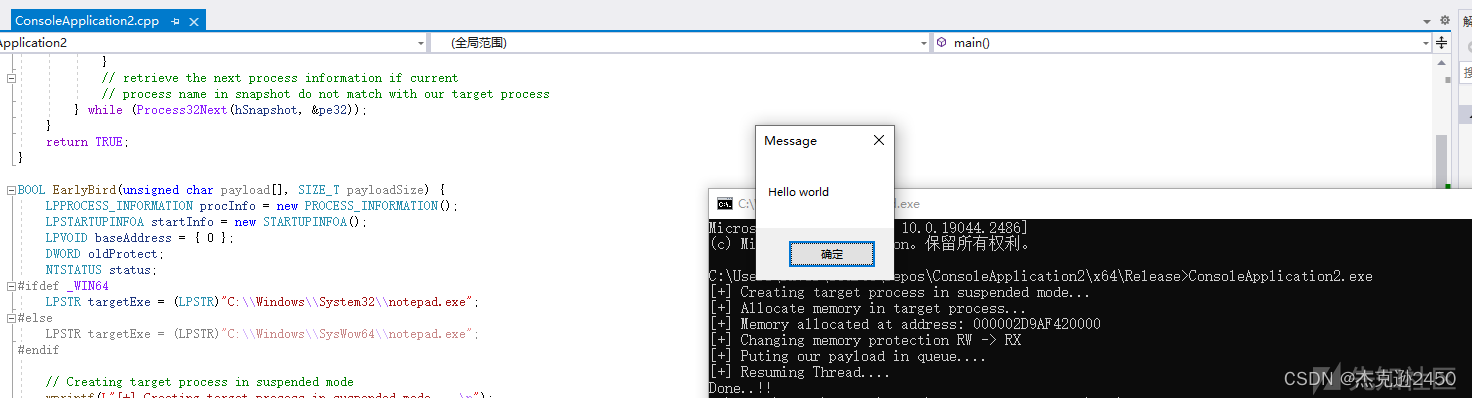

Final core code implementation
CreateProcessA(NULL, (LPSTR)targetexe, NULL, NULL, FALSE, CREATE_SUSPENDED, NULL, NULL, startInfo, procInfo)//Create the target process in suspend mode VirtualAllocEx(procInfo->hProcess, NULL, payloadSize, MEM_COMMIT | MEM_RESERVE, PAGE_READWRITE)//Allocate memory in the remote process of the protection attribute PAGE_READWRITE VirtualProtectEx(procInfo->hProcess, baseAddress, payloadSize, PAGE_EXECUTE_READ, & amp;oldProtect)//Change the memory protection property of the allocated memory from PAGE_READWRITE to PAGE_EXECUTE_READ Setup program (APC program) QueueUserAPC((PAPCFUNC)tRoutine, procInfo->hThread, 0)//put the payload into the APC queue ResumeThread(procInfo->hThread)//resume thread In this way, the process created in the suspended state at the beginning will start to execute the trigger APC function
Injection completed successfully  , and then return the handle of the window with the specified class name and window name //FindWindow(L”Shell_TrayWnd”, NULL );
● Retrieves the identifier of the thread that created the specified window, and optionally the identifier of the process that created the window. Returns the identifier of the thread that created the window //GetWindowThreadProcessId(hWindow, & amp;pid)
● Read addresses of PEB and KernelCallBackTable
● write the new table to the remote process
● Update PEB and trigger payload
● restore the original KernelCallbackTable
● free memory
● close the handle
After completing the above steps and implementing the code, you find that the operation is not completed because the calculator does not pop up
The above poc target process is explorer.exe, and the result fails
Then we can try another target process, such as Notepad.exe?
Just change a process, so it is really a good choice to use the Notepad process when testing
Why are there other processes running on the explorer.exe system?
Because the one found in the PEB is only used in the GUI process, it will be initialized when it is loaded into the memory of the process KernelCallbackTable
Problems in the code: explorer.exe crashes immediately when updating the PEB of the target process, restarting explorer.exe after the crash will cause the obtained window handle to be invalid, and finally cause the SendMessage function call to fail. So when we inject explorer.exe, we will find that it will be restored after a flash. It is because of the restart after the crash that the injected code failed to be cleaned up.
Why is there a problem?
Because we must first enumerate the window classes available on the system (this is possible with the EnumWindows() function.)
This will cause the target process to crash (the crash is visible to the user)
how to solve this problem
It can be solved by not locating explorer.exe and loading user32.dll into the memory, but if user32.dll is loaded into the current memory, the payload will be executed locally. But it cannot be injected into another process (also cannot remote process injection)
So since a process crash is inevitable, a process that is invisible to the user can be generated, so that even if it crashes, it will have no effect
CreateProcess(L"C:\Windows\System32\\ otepad.exe", NULL, NULL, NULL, FALSE, CREATE_SUSPENDED, NULL, NULL, &si, & amp;pi); Set process creation flags dwFlags to CREATE_SUSPENDED "hidden"
You can see that this line of code is the same as what we used when we introduced APC injection above. Therefore, it is a very good choice to hide the process suspension state when implementing process injection.
But the process created by this method is suspended without any window, that is, we cannot get the handle without the window. In this way, subsequent injection and payload execution cannot be completed. Because our APC injection does not need to obtain a handle (only need to obtain the process pid, and enumerate threads) to complete the injection
Then we need to find a way to get the handle
We can use the STARTUPINFOA structure, which can help us specify the window station, desktop, standard handle, etc. of the main window of the process when creating it
typedef struct _STARTUPINFOA {<!-- -->
DWORD cb;
LPSTR lpReserved;
LPSTR lpDesktop;
LPSTR lpTitle;
DWORD dwX;
DWORD dwY;
DWORD dwXSize;
DWORD dwYSize;
DWORD dwXCountChars;
DWORD dwYCountChars;
DWORD dwFillAttribute;
DWORD dwFlags;
WORD wShowWindow;
WORD cbReserved2;
LPBYTE lpReserved2;
HANDLE hStdInput;
HANDLE hStdOutput;
HANDLE hStdError;
} STARTUPINFOA, *LPSTARTUPINFOA;
(STARTF_USESHOWWINDOW //The wShowWindow member contains additional information.)
()
Set dwFlags, wShowWindow member
First set dwFlags to STARTF_USESHOWWINDOW so that wShowWindow information can be obtained
Then set wShowWindow to SW_HIDE it is depends on the visibility of the window
Then change CREATE_SUSPENDED to CREATE_NEW_CONSOLE
This way the process is invisible to the user and has a window. However, running the code still doesn’t get any handle
The reason why debugging fails is that the created process has not had time to initialize its input, and indeed because we created an invisible window to display, and the new process has a new console. So you need to wait for the process initialization to complete before executing the subsequent code.
WaitForInputIdle(Process, 1000) is perfectly done. This function will wait until the process is initialized and then continue to execute.
When executed, the UI is completely injected without seeing anything.
In fact, we can find that the small details used in the above code and some problems overcome are all completed through the usage of some other parameters in CreteProcess. You can see more about the usefulness of the parameters of Flags, maybe there are some better implementation methods.
