The previous articles introduced several ways to initialize the database after the project is started. Next, let’s take a look at how to use Liquibase to implement database version management.
SpringBoot has built-in support for Liquibase, which is very easy to use in projects
I. Project construction
1. Dependency
First build a standard SpringBoot project, the relevant versions and dependencies are as follows
This project is developed with SpringBoot 2.2.1.RELEASE
+ maven 3.5.3
+ IDEA
<dependencies> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-jdbc</artifactId> </dependency> <dependency> <groupId>org.liquibase</groupId> <artifactId>liquibase-core</artifactId> <version>3.8.0</version> </dependency> </dependencies>
This article uses the MySql database, version 8.0.31; the core of Liquibase depends on liquibase-core
, the version recommended to use SpringBoot matching version, generally speaking, no special specification is required
2. Configuration
Configuration file resources/application.yml
# default database name database: name: tt spring: datasource: url: jdbc:mysql://127.0.0.1:3306/${<!-- -->database.name}?useUnicode=true & amp;characterEncoding=UTF-8 & amp;useSSL=false & amp;serverTimezone= Asia/Shanghai username: root password: liquibase: change-log: classpath:liquibase/master.xml enabled: true record: level: root: info org: springframework: jdbc: core: debug
The key configurations are spring.liquibase.change-log
and spring.liquibase.enabled
The first specified is the xml file corresponding to the change-log, and its content is as follows
liquibase core xml file resources/liquibase/master.xml
<?xml version="1.0" encoding="utf-8"?> <databaseChangeLog xmlns="http://www.liquibase.org/xml/ns/dbchangelog" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.liquibase.org/xml/ns/dbchangelog http://www.liquibase.org/xml/ns/dbchangelog/dbchangelog-3.5.xsd"> <include file="liquibase/changelog/000_initial_schema.xml" relativeToChangelogFile="false"/> </databaseChangeLog>
The above xml depends on an xml file, such as the first main definition is the initialized table structure
The corresponding content of resources/changelog/000_initial_schema.xml
is as follows
<?xml version="1.0" encoding="utf-8"?> <databaseChangeLog xmlns="http://www.liquibase.org/xml/ns/dbchangelog" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.liquibase.org/xml/ns/dbchangelog http://www.liquibase.org/xml/ns/dbchangelog/dbchangelog-3.5.xsd"> <property name="now" value="now()" dbms="mysql"/> <property name="autoIncrement" value="true"/> <changeSet id="00000000000001" author="YiHui"> <sqlFile dbms="mysql" endDelimiter=";" encoding="UTF-8" path="liquibase/data/init_schema_221209.sql"/> </changeSet> <changeSet id="00000000000002" author="YiHui"> <sqlFile dbms="mysql" endDelimiter=";" encoding="UTF-8" path="liquibase/data/init_data_221209.sql"/> </changeSet> </databaseChangeLog>
In the above configuration file, the core point is
where the id is required to be globally unique, and sqlFile
represents the SQL statement corresponding to this change; a
corresponds to a change. Note that after each change is completed, it cannot be modified (the content of the sql file cannot be changed), and the changeSet itself should not be modified.
Next, look at the corresponding sql file
resources/liquibase/data/init_schema_221209.sql
The corresponding schema-related table structure is defined as follows
CREATE TABLE `user` ( `id` int unsigned NOT NULL AUTO_INCREMENT COMMENT 'primary key ID', `third_account_id` varchar(128) NOT NULL DEFAULT '' COMMENT 'Third-party user ID', `user_name` varchar(64) NOT NULL DEFAULT '' COMMENT 'username', `password` varchar(128) NOT NULL DEFAULT '' COMMENT 'password', `login_type` tinyint NOT NULL DEFAULT '0' COMMENT 'Login method: 0-WeChat login, 1-account password login', `deleted` tinyint NOT NULL DEFAULT '0' COMMENT 'Delete', `create_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT 'Create time', `update_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT 'last update time', PRIMARY KEY (`id`), KEY `key_third_account_id` (`third_account_id`), KEY `user_name` (`user_name`) ) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8mb4 COMMENT='User login form';
The initialization data corresponding to resources/liquibase/data/init_data_221209.sql
is defined as follows
INSERT INTO `user` (id, third_account_id, `user_name`, `password`, login_type, deleted) VALUES (1, 'a7cb7228-0f85-4dd5-845c-7c5df3746e92', 'admin', 'admin', 0, 0);
II. Project presentation
1. Test
After the above configuration is completed, no special processing is required in the main project structure project. Let’s write a simple startup test
@Slf4j @SpringBootApplication public class Application implements ApplicationRunner {<!-- --> @Autowired private JdbcTemplate jdbcTemplate; public static void main(String[] args) {<!-- --> SpringApplication.run(Application.class); } @Override public void run(ApplicationArguments args) throws Exception {<!-- --> List list = jdbcTemplate.queryForList("select * from user limit 2"); log.info("The project started successfully, initialized data: {}", list); } }

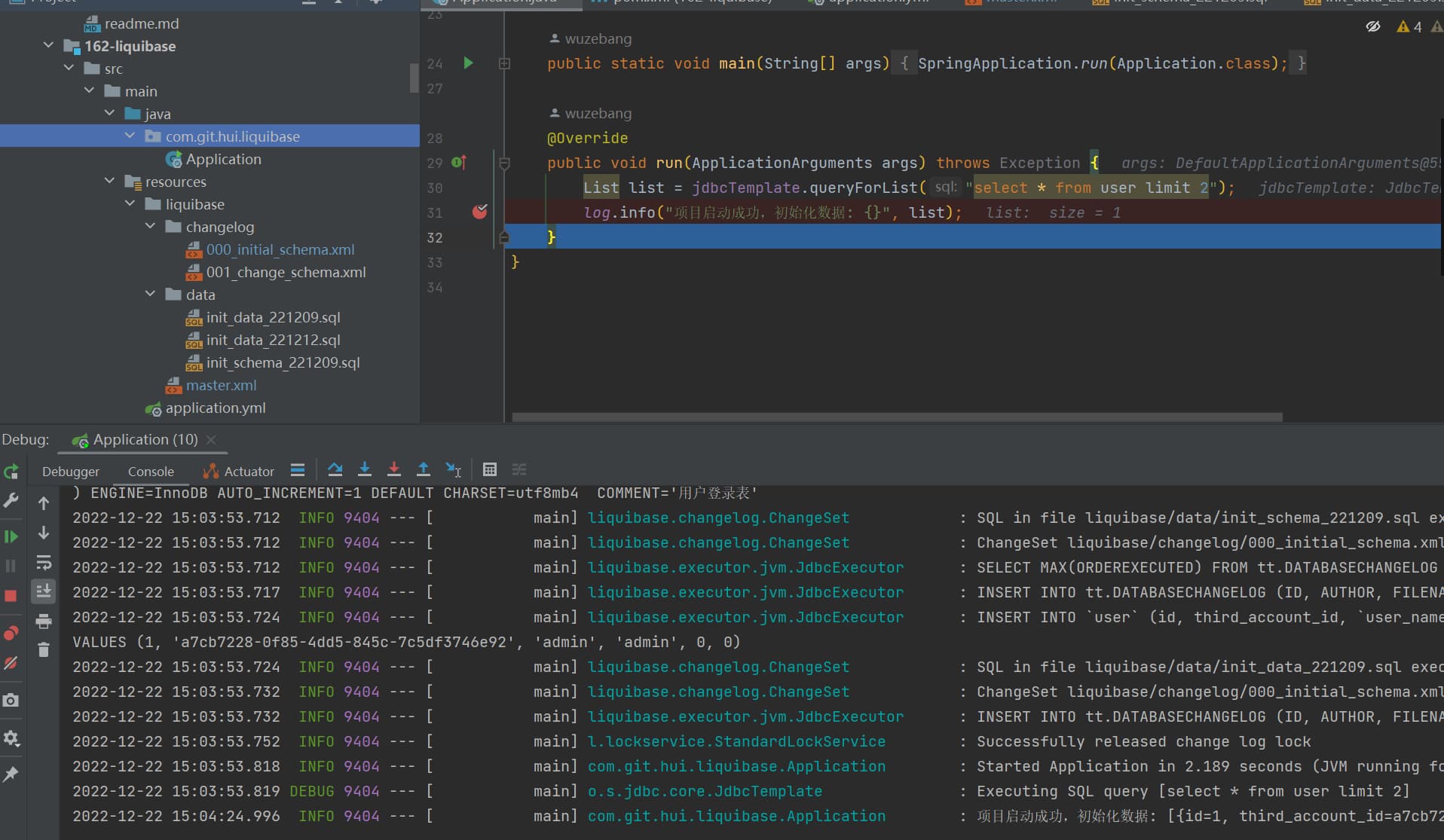

Look at the output after direct execution (before execution, please make sure that the database has been successfully created; if not, an exception will be thrown)
2. Incremental changes
The above demonstration is the initialization process; in the actual development process, if there is an incremental change, for example, a new test data needs to be added now, our operation process can be as follows
Add a new 001_change_schema.xml
file under the liquibase/
directory, and the ChangeSet
related to subsequent incremental changes are placed in this xml file; In the master.xml file, add the introduction of the above xml file
<include file="liquibase/changelog/001_change_schema.xml" relativeToChangelogFile="false"/>
The second is the content of the resources/liquibase/changelog/001_change_schema.xml
file
<?xml version="1.0" encoding="utf-8"?> <databaseChangeLog xmlns="http://www.liquibase.org/xml/ns/dbchangelog" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.liquibase.org/xml/ns/dbchangelog http://www.liquibase.org/xml/ns/dbchangelog/dbchangelog-3.5.xsd"> <property name="now" value="now()" dbms="mysql"/> <property name="autoIncrement" value="true"/> <!-- When a new change occurs later, a corresponding changeSet is added for each change --> <changeSet id="00000000000003" author="YiHui"> <sqlFile dbms="mysql" endDelimiter=";" encoding="UTF-8" path="liquibase/data/init_data_221212.sql"/> </changeSet> </databaseChangeLog>
The above changeSet
contains initialization related sql files, the contents are as follows
INSERT INTO `user` (id, third_account_id, `user_name`, `password`, login_type, deleted) VALUES (2, 'a7cb7228-0f85-4dd5-845c-11123123', 'new', 'new', 0, 0);

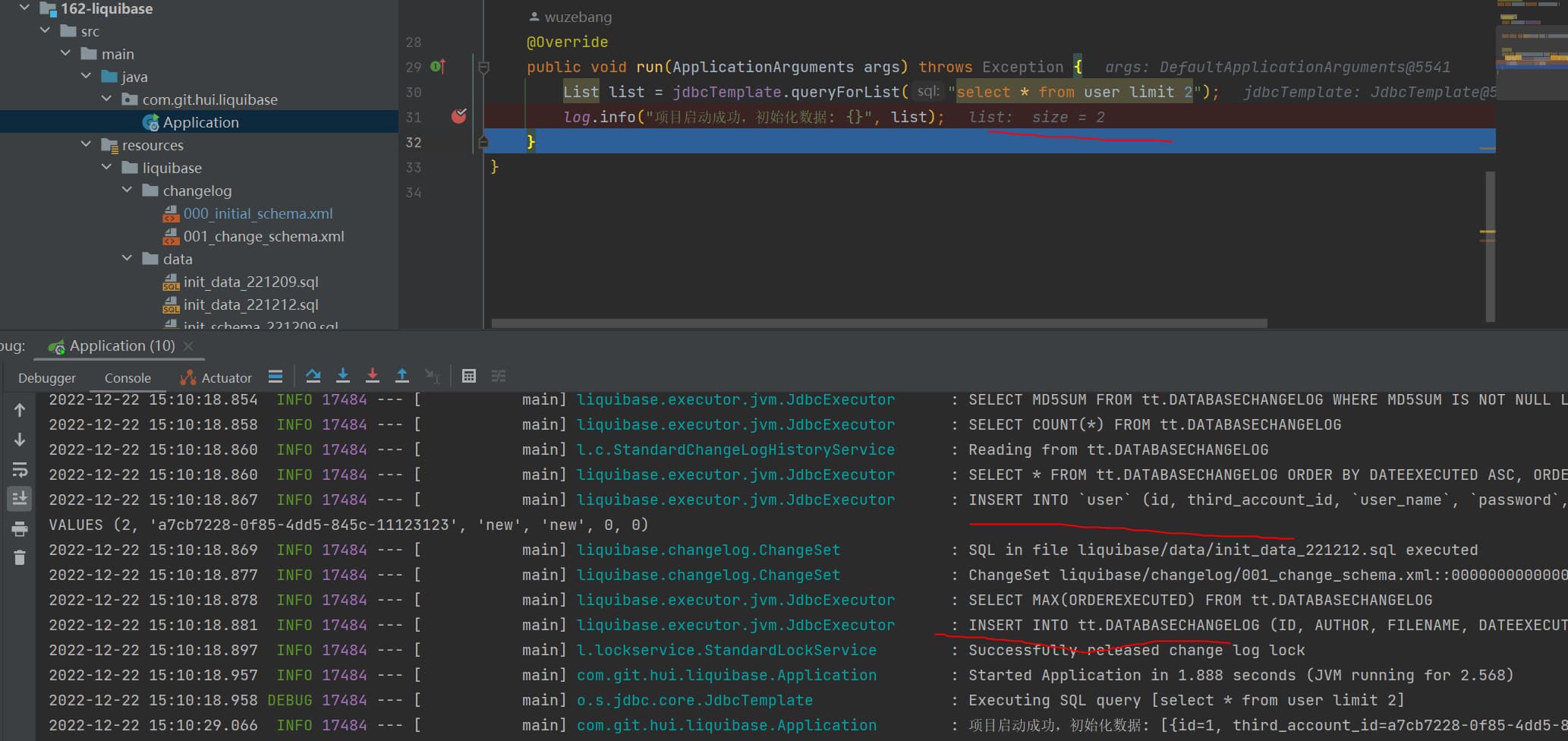

Start again to verify whether new data has been added
3. Summary
This article mainly introduces how SpringBoot combines Liquibase to realize database version management. The core knowledge points are not introduced much. When actually using it, pay attention
For each change, add a new
, and ensure that all ids are unique; after the change is completed, do not modify the content of the corresponding sql file
Liquibase itself also has some related knowledge points, such as version rollback, tag semantics, etc. The next blog post will specifically introduce the core knowledge points of Liquibase itself
If you are interested in the initial data after the project starts, please check it out
- [DB series] Database initialization – datasource configuration method | A gray blog
- [DB series] Database initialization – jpa configuration method | A gray blog
- [DB Series] Database Initialization – DataSourceInitializer Method | A Gray Blog
III. Source code and related knowledge points that cannot be missed
0. Project
- Project: https://github.com/liuyueyi/spring-boot-demo
- Source code: https://github.com/liuyueyi/spring-boot-demo/tree/master/spring-boot/162-liquibase
